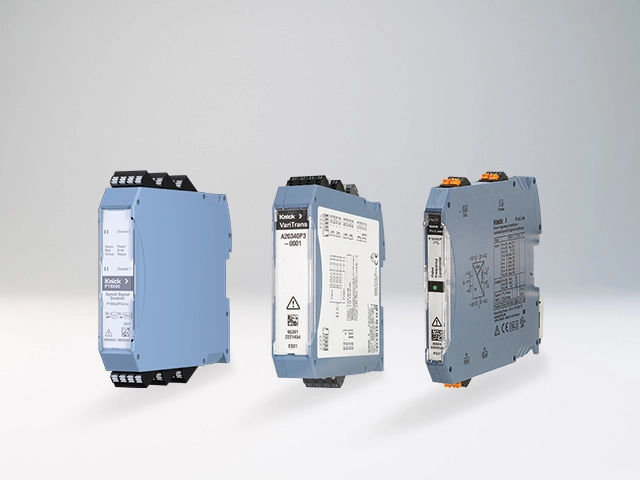

Signal Multipliers

Signal multipliers reduce the complexity of measuring set-ups by multiplying input signals and providing them galvanically isolated at their outputs. Alongside duplicators and quadruplers for standard signals, our range covers highly insulated, interference-resistant pulse transducers for functionally safe speed signal duplication. All signal multipliers also offer options for signal conversion.

Filter

Filter
P16800 Speed Signal Doubler | Input speed sensor signal 10 … 33.6 V DC (max.35 V) | Safe decoupling acc. SIL4, safe transmission acc. SIL2
P16800 Speed Signal Doubler | Input speed sensor signal 10 … 33.6 V DC (max.35 V) | Safe decoupling acc. SIL4, safe transmission acc. SIL2
Product number:

P16800

Function: Processing of rpm/speed sensor signals

Isolation AC/DC: up to 1,000 V

BL530 Signal Doubler | Input 0(4) … 20 mA | 2x 400 ohms output load
BL530 Signal Doubler | Input 0(4) … 20 mA | 2x 400 ohms output load
Product number:

BL530

Function: Decoupled distribution of standard signals

A20300 Signal Doubler | 4-Port Isolation | Space-saving in 6 mm Enclosure
A20300 Signal Doubler | 4-Port Isolation | Space-saving in 6 mm Enclosure
Product number:

A20300

Function: Decoupled distribution of standard signals

Isolation AC/DC: up to 300 V

A20340 Standard-signal Multiplier | 6-Port Isolation
A20340 Standard-signal Multiplier | 6-Port Isolation
Product number:

A20340

Function: Decoupled distribution of standard signals

Isolation AC/DC: up to 300 V

P16000 Pulse Frequency Conditioner | Input speed sensor signal up to 20kHz | Safe decoupling acc. SIL3
P16000 Pulse Frequency Conditioner | Input speed sensor signal up to 20kHz | Safe decoupling acc. SIL3
Product number:

P16000

Function: RPM/speed recording

Isolation AC/DC: up to 300 V
