Uniclean 700 Series - Modular Control System for Measuring Loops

Explosion protection
Enclosure
Protection
Product number: EPC710-NNS
Description Technical details Downloads Use cases Blog posts

Description

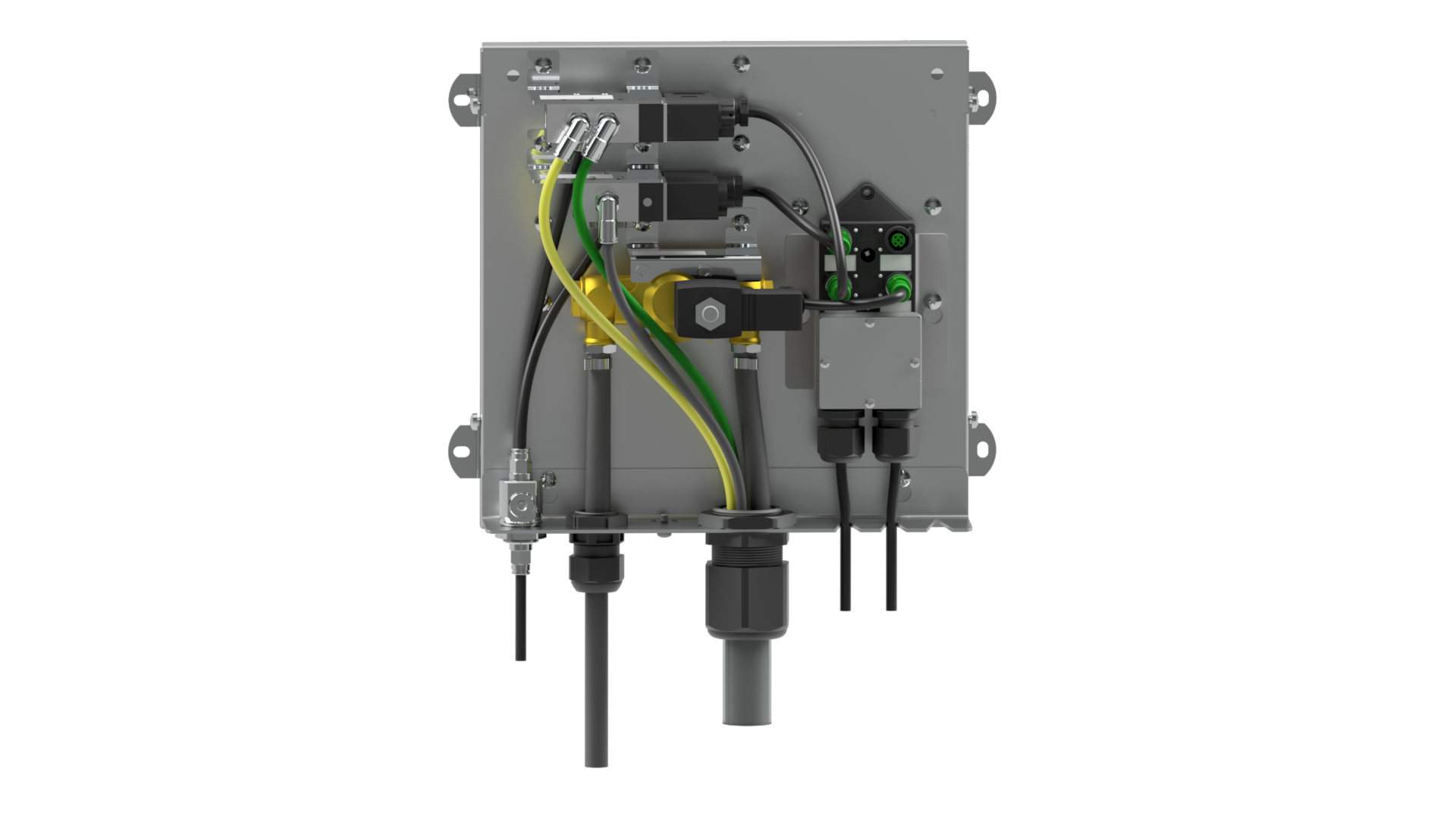

Uniclean 700 Series - Modular Control System for Measuring Loops

Flexible electro-pneumatic controller for automated sensor cleaning with up to 3 rinsing media

Modularity

  • Customized solution in accordance with customer requirements
  • Simple conversion for process changes

Flexibility

  • For operation with static and with retractable fittings
  • Control of cleaning processes possible with or without transmitter

Fast Commissioning

  • Entry-level solution for auto mated sensor maintenance
  • Modules can be installed in just a few steps

Uniclean 700 is a product series of control modules that can be used to implement automatic sensor cleaning in static or retractable fittings easily and flexibly.

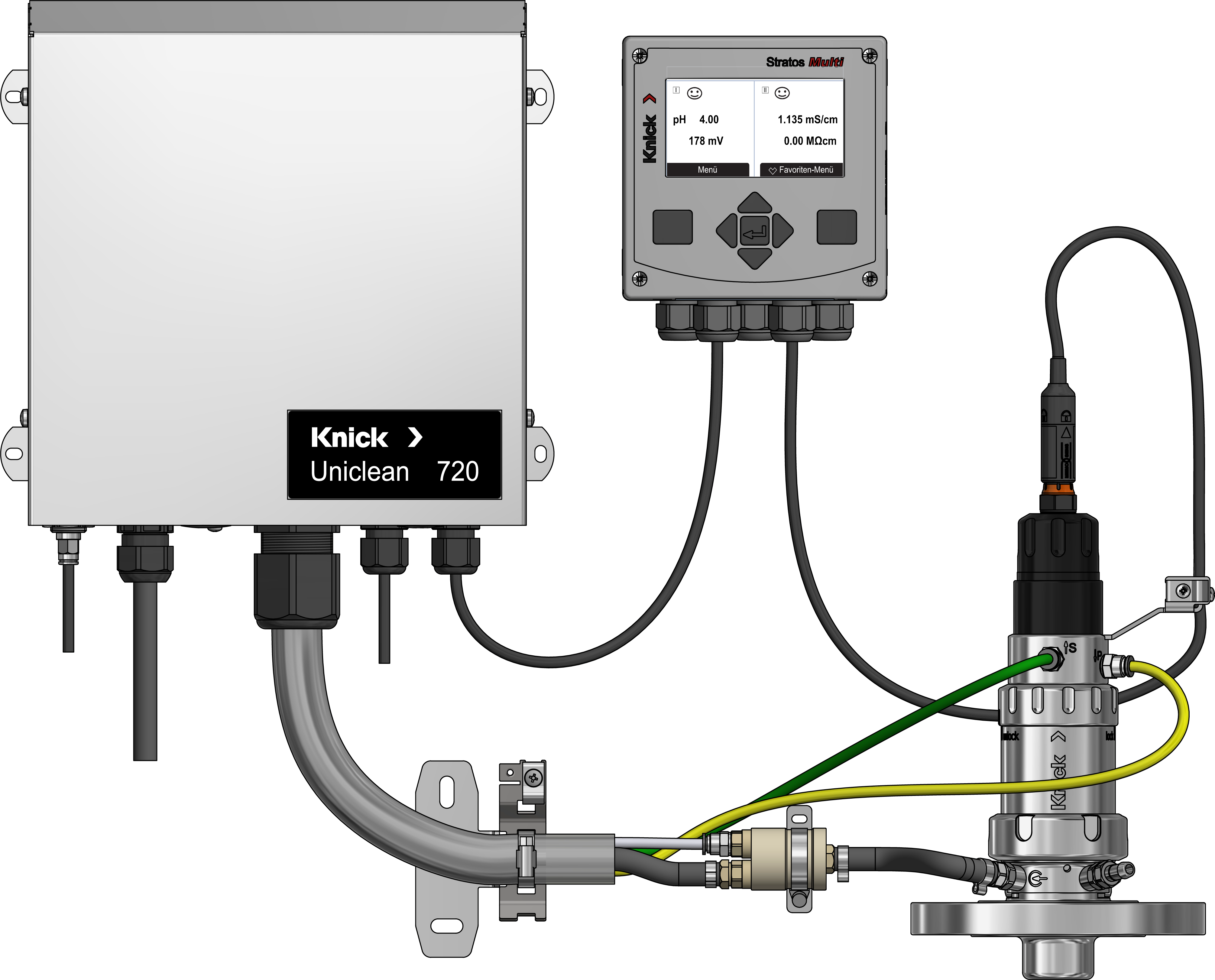

The modules can be used to configure a variety of cleaning options with up to 3 rinsing media (water, air, or chemical cleaning agents) and to control retractable fittings with pneumatic or hydraulic drive units. The cleaning process can be triggered with a simple switch signal (relay contact at transmitter or pushbutton). Version 710 for installation in a protective cabinet, 720 including cover.

We look forward to hearing from you!
Contact Us

Technical details

Dimensions (W x H x D): approx. 275 x 310 x 98 mm
Explosion protection: non Ex
Enclosure: Stainless steel A2
Protection: without

Downloads

Manuals

[17444] User Manual
Uniclean 710/720
Modular Control and Cleaning System
Version 01

Data Sheets

[17517] Data sheet
Uniclean 700
Product Description | Specifications | Product Range

Certificates

[17451] EU Declaration of Conformity (DE, EN, FR)
No. EU231207A | 2023-12-07
Electro-pneumatic control system EPC7*0-NN

Installation guides

[17469] Installation Guide
EPC700 Air 2/2-Way Valve
Version 01
[17487] Installation Guide
EPC700 Air 3/2-Way Valve
Version 01
[17481] Installation Guide
EPC700 Air 5/2-Way Valve
Version 01
[17493] Installation Guide
EPC700 Water 2/2-Way Valve
Version 01
[17499] Installation Guide
EPC710 Connection Bracket
Version 01
[17505] Installation Guide
EPC720 Connection Bracket
Version 01
[17511] Installation Guide
EPC720 Cover
Version 01
[18126] Installation Guide
ZU1182
Connector for Rinsing Media
Version 01
[17475] Installation Guide
EPC700-Module A
Version 03
[17457] Installation Guide
EPC700 Valve Connection Box
Version 02
[17463] Installation Guide
EPC700 Hose
Version 01
