SE554 pH Sensor | Memosens | 325 mm | Ex | For very high ionic strength media
Product number:
SE554X/3-NMSN
Description
SE554 pH Sensor | Memosens | 325 mm | Ex | For very high ionic strength media
Low-maintenance sensor for demanding process application in the chemical industry, digital, with Memosens technology
- Perfect galvanic isolation thanks to Memosens technology
- No influence of humidity in the connector
- Precalibration in the lab
- Digital data transfer
- Integrated sensor diagnostics
- Low maintenance, no refilling of electrolyte
- Integrated temperature detector
- Open junctions, no blocking
- Alpha glass, medium impedance, universal glass, fluoride resistant
High accuracy, stability, rapidness, and a long life cycle are achieved by the special design. Through 2 open junctions, the reference system is in direct contact with the measured medium. There is hardly any risk of contamination or blocking of the junction. The high content and special distribution of potassium chloride in the polymer reduces measurement disturbances which could be caused by liquid junction potentials.
Applications
Industrial applications, dyes, precipitation reactions, polluted media
We look forward to hearing from you!
Contact Us
| Measurement Parameter: | pH |
|---|---|
| Connector: | Memosens |
| Explosion protection: | Ex |

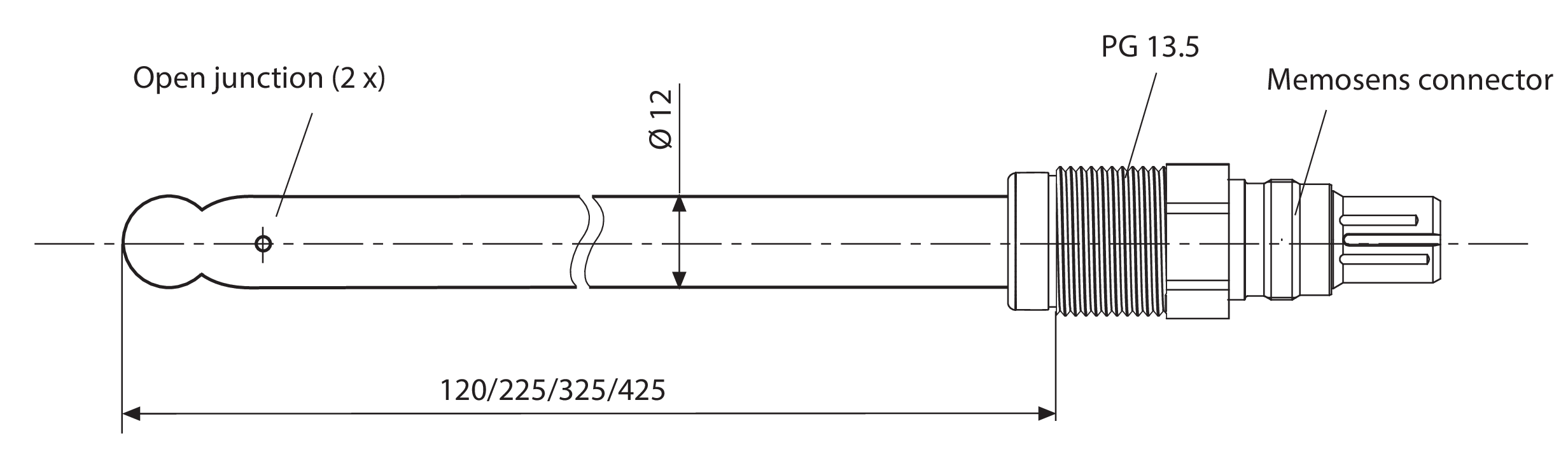

| Length: | 325 mm |
| Process Connection: | PG 13.5 |
| Measuring Range: | 0 … 14 pH |
| Temperature: | 0 … 130 °C |
| Pressure, relative: | 0 … 10 bar |
| Temperature Detector: | NTC 30 kΩ |
| Junction: | Hole (2x) |
| Reference System: | Ag/AgCl, polymer electrolyte |
| Sensor Material: | Alpha glass |
Downloads
Manuals
Brochures
Data Sheets
Certificates
Safety guides
