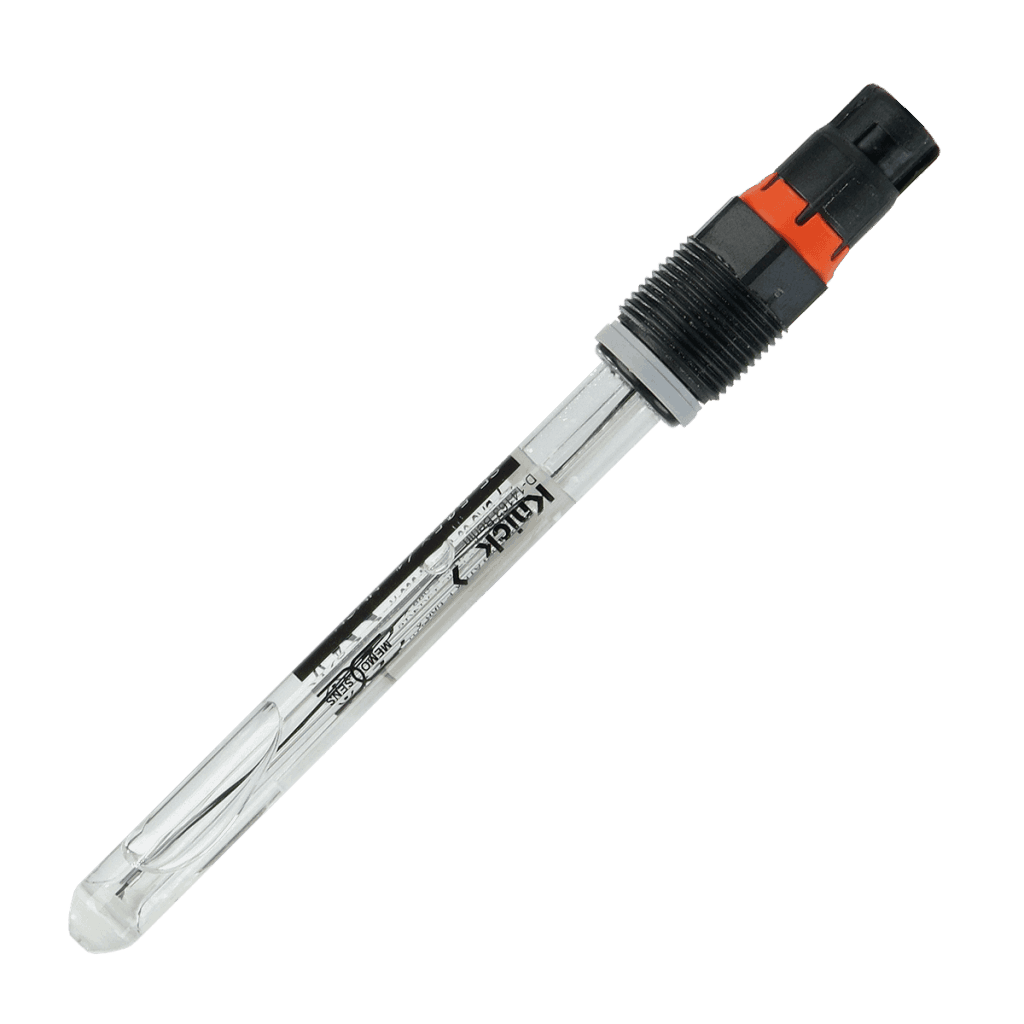

SE565 ORP Sensor | Memosens | 120 mm | Ex | For hygienic processes and sterile applications
Product number:
SE565X/1-NMSN
Description
SE565 ORP Sensor | Memosens | 120 mm | Ex | For hygienic processes and sterile applications
ORP sensor for hygienic processes and sterile applications.
- perfect galvanic isolation thanks to Memosens technology
- no influence of humidity in the connector
- digital data transfer
- integrated sensor diagnostics
- state-of-the-art gel electrolyte
- integrated temperature detector
- ceramic junction
- for hygienic and sterile applications
- for heavily polluted media
- for media containing sulfides
- for media containing proteins
- suitable for solvent-containing processes
The SE565 ORP sensors are of low maintenance. Through a ceramic junction, the pressurized reference system with gel electrolyte is in contact with the process medium. The measuring electrode is made of platinum.
SE565 sensors are designed for simultaneous measurement of ORP and temperature in industrial processes.
They are suitable for sterilization with steam and they provide a reference system which has been developed for the use in food and pharmaceutical products.
Applications
Hygienic and sterile applications, food and pharmaceutical industry, biotechnology
We look forward to hearing from you!
Contact Us
| Measurement Parameter: | ORP |
|---|---|
| Connector: | Memosens |
| Explosion protection: | Ex |
| Length: | 120 mm |
| Process Connection: | PG 13.5 |
| Measuring Range: | ± 1500 mV |
| Temperature: | 0 … 135 °C |
| Pressure, relative: | -1 … 6 bar |
| Temperature Detector: | NTC 30 kΩ |
| Junction: | Ceramic (1x) |
| Reference System: | Ag/AgCl, pressurized gel electrolyte |
| Material of measuring electrode: | Platinum |
