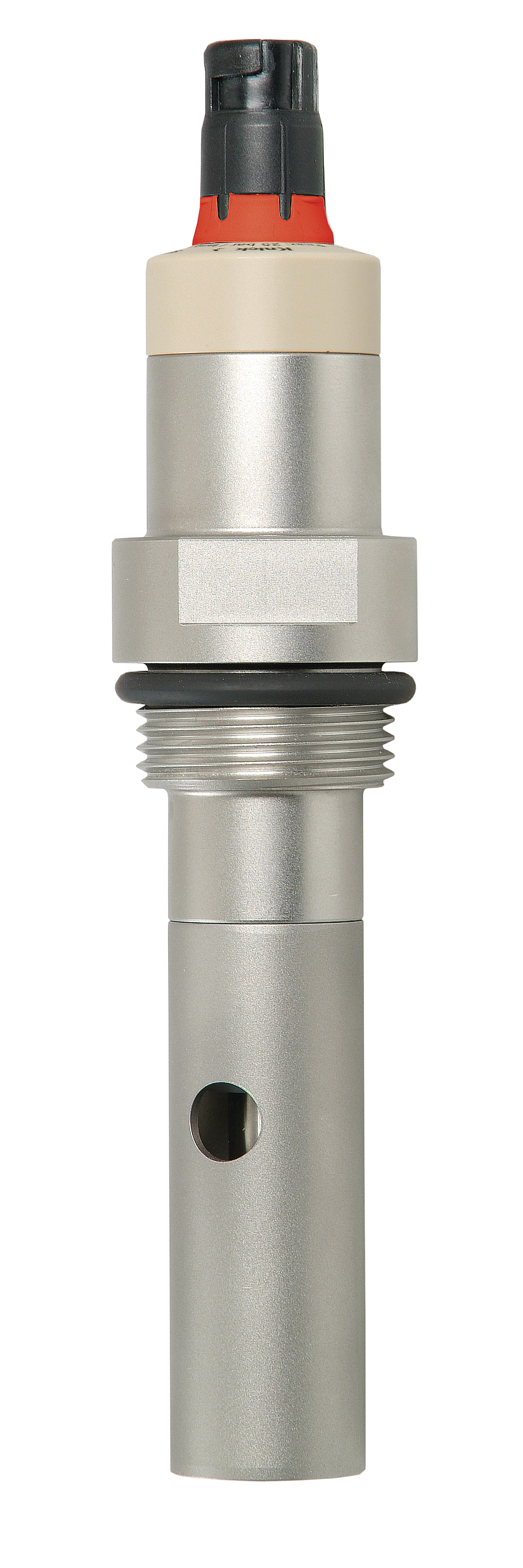

SE604 2-Electrode Conductivity Sensor | Memosens | Measuring range from ultrapure water to 500 μS/cm
Product number:
SE604-MS
Description
SE604 2-Electrode Conductivity Sensor | Memosens | Measuring range from ultrapure water to 500 μS/cm
Robust 2-electrode sensor, for precise and reliable measurement of low and very low conductivities, particularly in ultrapure water, digital, with Memosens technology.
- Perfect galvanic isolation thanks to Memosens technology
- Digital data transfer
- Integrated sensor diagnostics
- Large measuring range from ultrapure water to 500 μS/cm
- Coaxially arranged electrodes
- Independent of installation conditions
- Integrated temperature detector
- High level of process safety due to durable materials and robust design
- Easy to clean thanks to detachable outer electrode
- Particularly suitable for monitoring ultrapure water in power plants
Robust, coaxially arranged electrodes made of stainless steel. Large measuring range from ultrapure water to 500 μS/cm.
Integrated temperature detector for temperature compensation. Easy to clean thanks to replaceable outer electrode.
Applications
Boiler feed water, feed water, boiler water, cooling water, water vapor cycle, pure water, condenser monitoring
We look forward to hearing from you!
Contact Us
| Measurement Parameter: | Conductivity |
|---|---|
| Connector: | Memosens |
| Explosion protection: | non Ex |
| Process Connection: | G 1“ thread |
| Measuring Range: | 0.001 … 500 µS/cm |
| Temperature Detector: | NTC 30 kΩ |
| Measuring Principle: | 2 electrodes |
| Pressure: | Max. 10 bar (120 °C), Max. 25 bar (–20 … 70 °C) |
| Electrode Material: | Stainless steel 1.4571 |
| Ambient temperature: | –25 … +80 °C |
| Cell constant: | 0.029/cm |
| Signal Transmission: | Memosens |
Downloads
Manuals
Brochures
Data Sheets
Certificates
Our service
Used in Process or Applications
Related Products

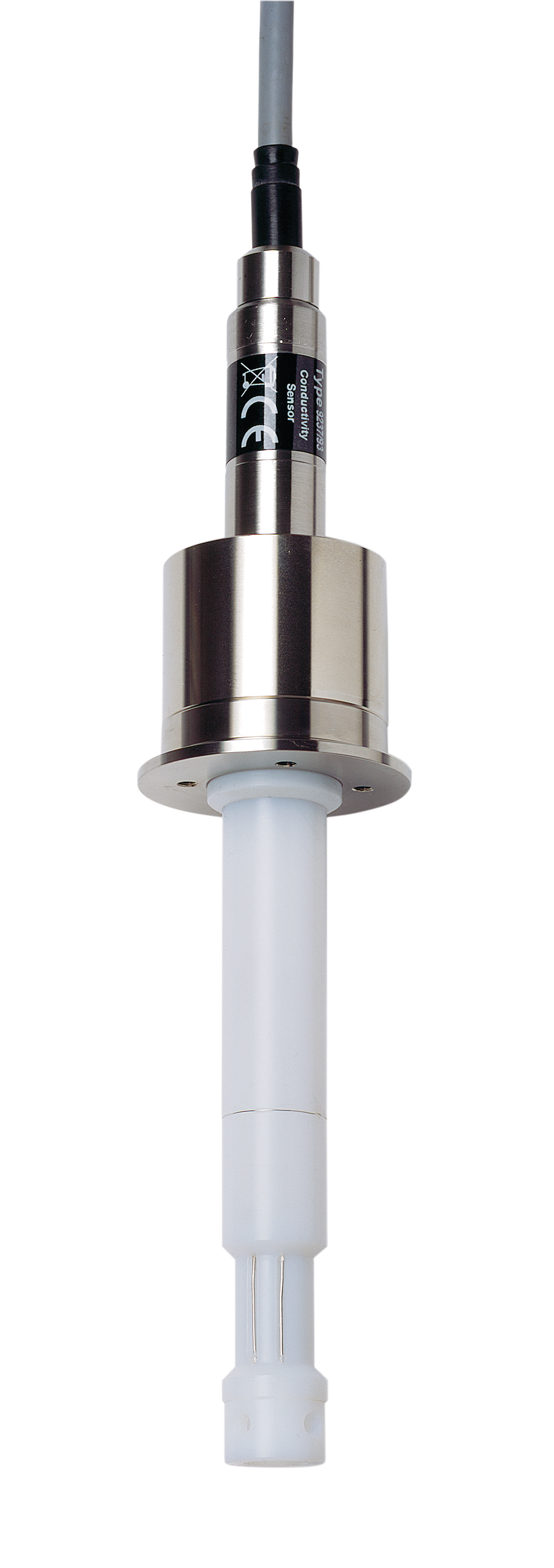

SE603 4-Electrode Conductivity Sensor | Fixed cable | Very high corrosion resistance
Product number:
SE603
SE605H 2-Electrode Conductivity Sensor | Memosens | Clamp | Ex | Hygienic design
Product number:
SE605H-XMSJ

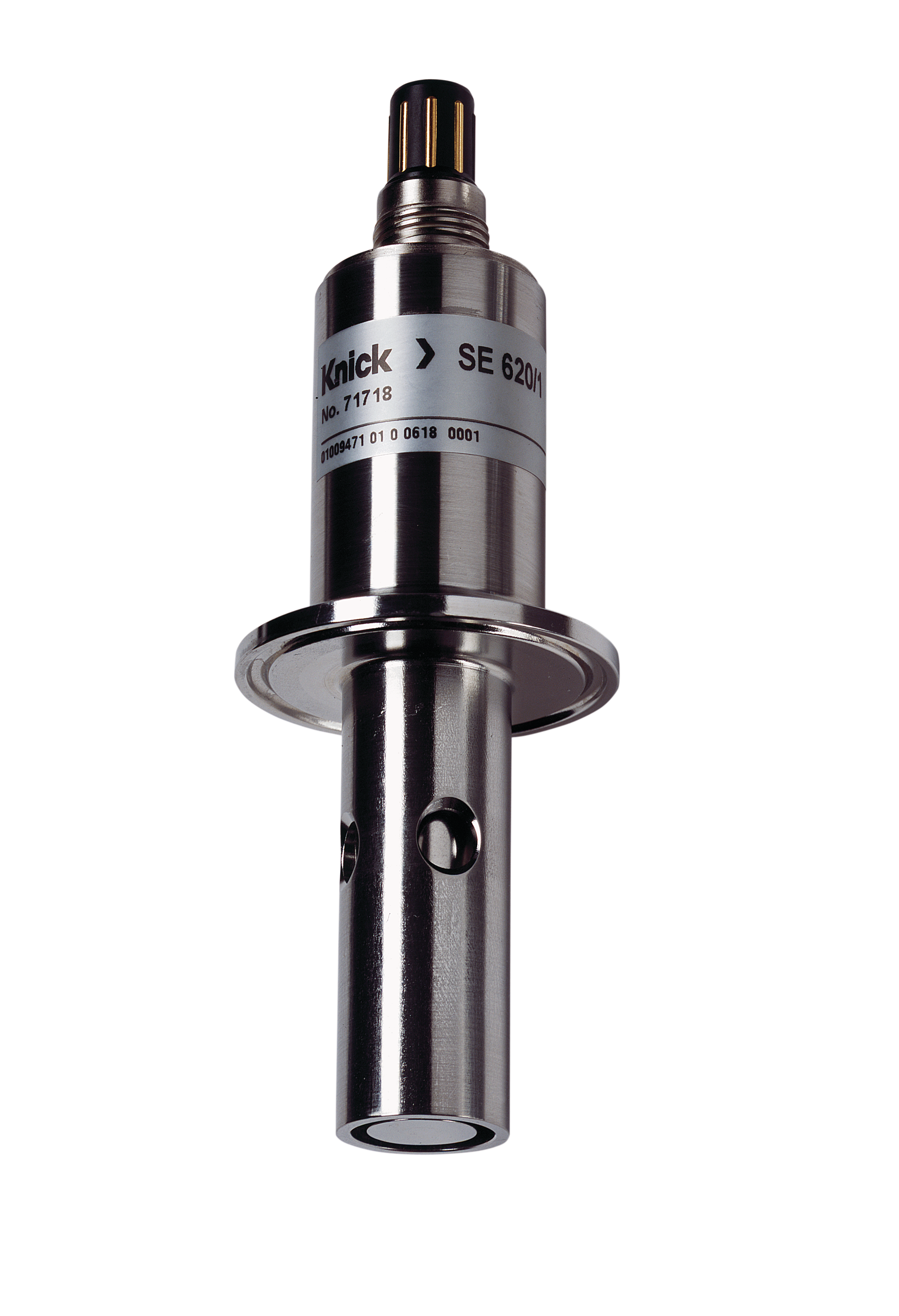

SE620 2-Electrode Conductivity Sensor | VP | Pharma compliant hygienic design
