Description

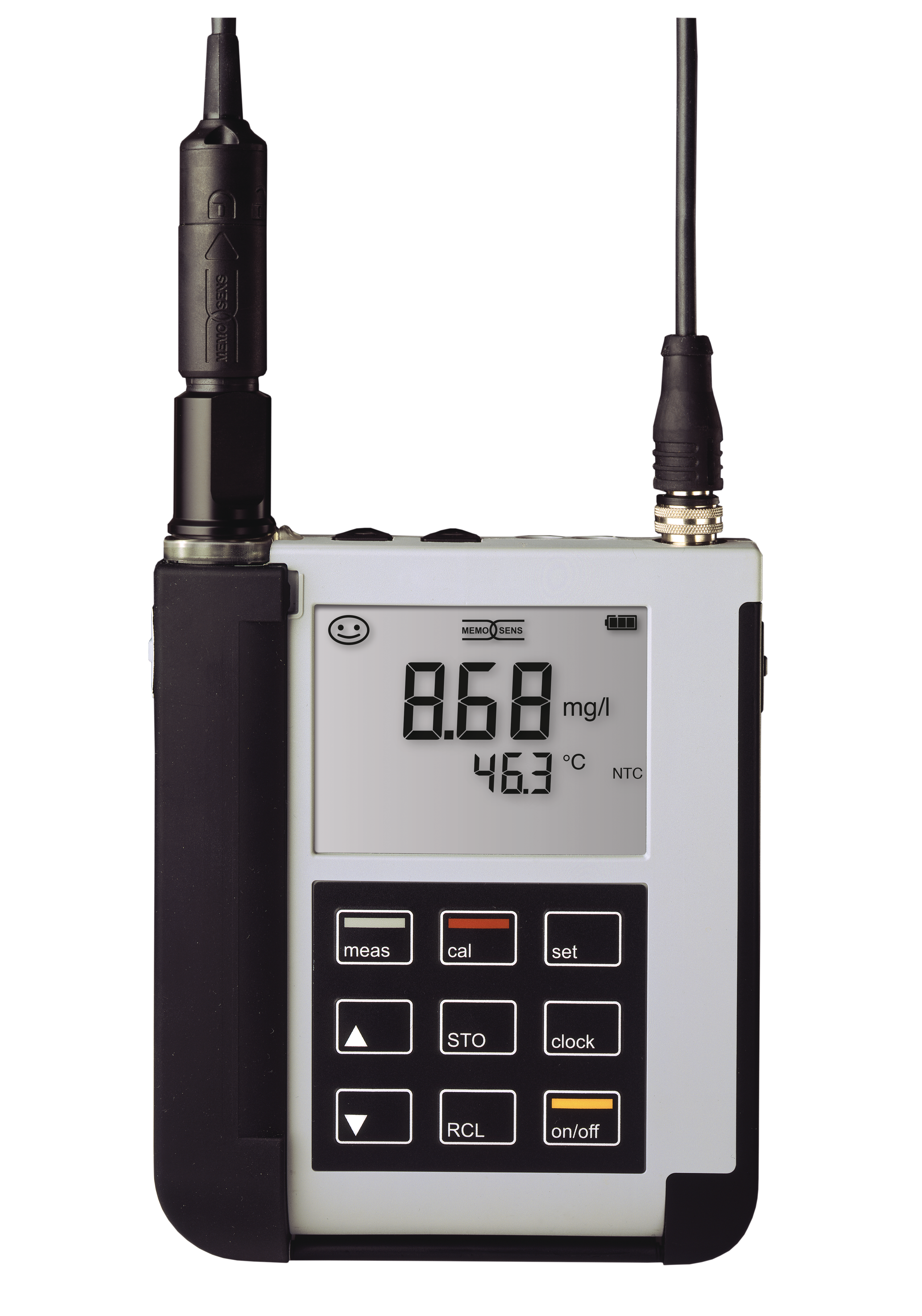

Portable, sturdy process analyzer for oxygen measurement.
- For use with amperometric Memosens oxygen sensors
- Measurement in liquids or in the gaseous phase
- Sensor quiver protects the sensor from drying out and damage
- The sturdy housing with IP66/67 protection is also suitable for outdoor use
- Li-ion rechargeable battery - USB chargeable
- Data logger with 5,000 values
- Micro USB port and Paraly SW 112 operating software
- Mineral glass screen can still be read perfectly after many years
- User management for access control
- Sensor verification for clear assignment of the sensor to the device via sensor type, TAG, or group
- Temperature detector adjustment in the Memosens sensor (offset correction)
Up to 5,000 values can be recorded using the integrated data logger. The MemoLog function enables the logging of calibration data from various Memosens measuring points, which can then be easily transferred to a PC via the USB interface. The Paraly SW 112 software enables easy management of all recorded data.
Security Package, Including User Management
Professional user management regulates access to the device and the sensor.
- Increased security for configuration, calibration, measurement data, and data logger settings.
- No unauthorized interventions during the operating cycle
- Up to 4 user profiles can be set
- Different access rights can be established
Depending on the user’s experience, the role profile can optionally be defined for configuration of the device and sensor or for sensor calibration. This clearly minimizes the risk of inadvertently changing settings.
Greater Reliability During Operation
Memosens sensors can be assigned directly to the Portavo using the data stored in the sensor, such as
- Sensor type
- TAG
- Group
Unambiguous assignment of the sensor to the device reduces the potential for errors. This ensures that only the right sensors are used for the selected measuring point.
We look forward to hearing from you!
Contact Us
| Additional functions: | Sensor verification, Temperature Adjustment, User management |
|---|---|
| Channels: | 1 channel |
| Data Logger: | data logger with 5,000 entries |
| Display: | LCD STN 7-segment display with 3 lines and icons |
| permanently installed / portable: | portable |
| Enclosure: | PA12 GF30 (silver gray RAL 7001) + TPE (black) |
