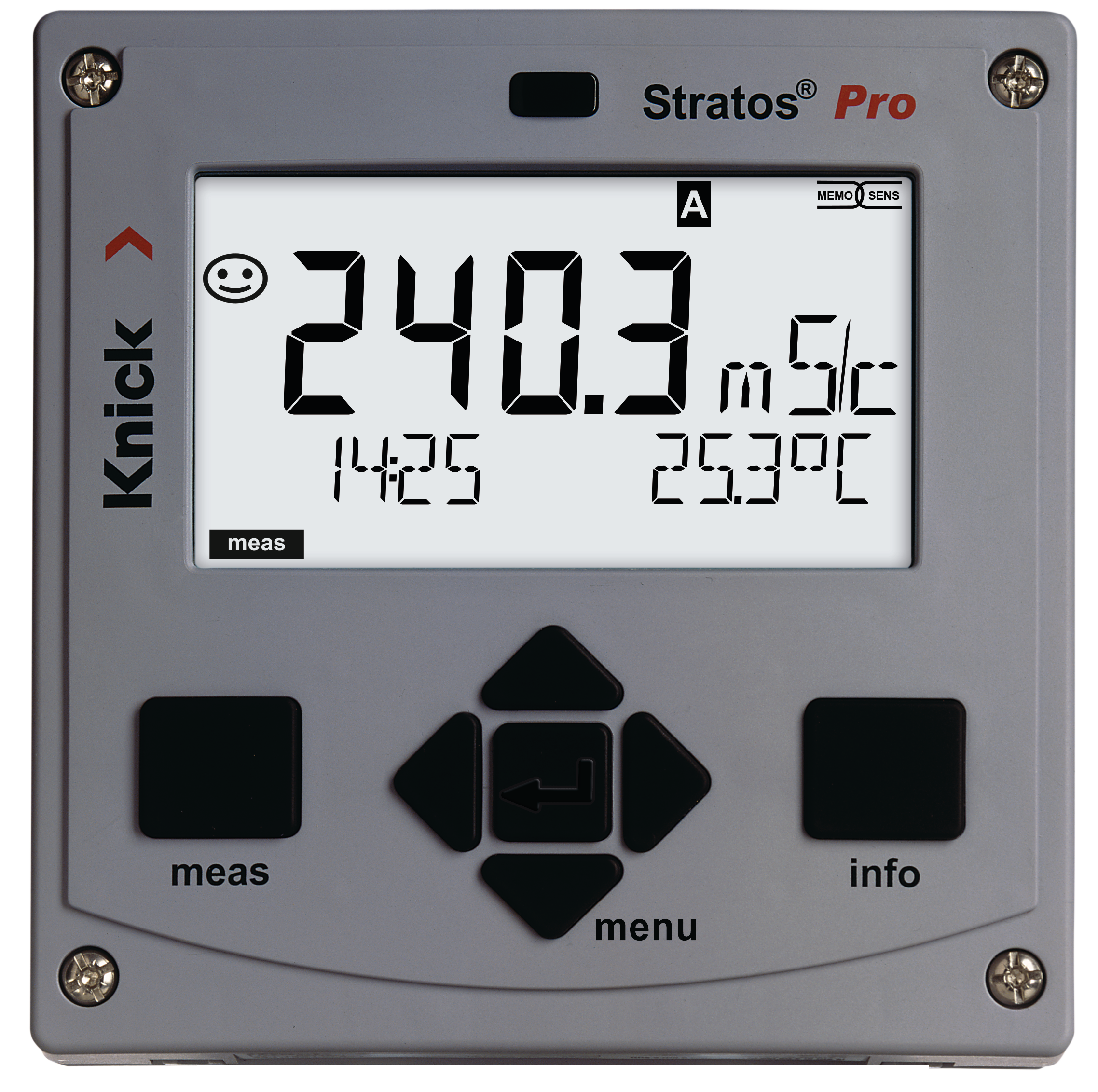

Stratos Pro A201 MSCONDI Inductive Conductivity Transmitter | Memosens Sensors | Ex Zone 0/1 | HART | 4 ... 20 mA Output
Product number:
A201X-MSCONDI-0
Description
Stratos Pro A201 MSCONDI Inductive Conductivity Transmitter | Memosens Sensors | Ex Zone 0/1 | HART | 4 ... 20 mA Output
2-wire analyzer for conductivity measurement
- Extensive diagnostic functions with Memosens sensors
- Explosion protection: Zone 1 / Class 1 Division 1 (with sensor in Zone)
- Digital communication: HART
- Intuitive operation with color-coded user guidance
- IP 66/67, NEMA 4X protection
- Automatic sensor identification
- Sensor diagnostic with wear indication, remaining lifetime, CIP/SIP counter and adaptive calibration timer
- High-contrast widescreen display with colored backlighting
- Protective pane made of safety glass
- One analog input (4 ... 20 mA) e.g. for external pressure compensation
- Two parameter sets
- Two digital inputs:
- External HOLD activation
- External switching between parameter set
- Logbook (200 entries)
Outstanding properties
A number of outstanding technological properties make the Stratos Pro series the new benchmark for 2-wire analyzers. Colored screen backlighting has been implemented for the first time in this device class, with the lowest possible power consumption.
A number of outstanding technological properties make the Stratos Pro series the new benchmark for 2-wire analyzers. Colored screen backlighting has been implemented for the first time in this device class, with the lowest possible power consumption.
Wide Range of Functions
2 digital inputs are provided, as well as an analog input plus a second current output for another measured value.
2 digital inputs are provided, as well as an analog input plus a second current output for another measured value.
Zone 1 Explosion Protection
Stratos Pro is designed for operation in Zone 1 / Class 1 Division 1 hazardous areas (with the sensor in Zone 0). Operation in hazardous areas from –20 °C to +65 °C is possible. The devices are designed for gas and dust explosion protection (G/D) and can naturally also be used outdoors (type 4 enclosure, UV resistant).
Stratos Pro is designed for operation in Zone 1 / Class 1 Division 1 hazardous areas (with the sensor in Zone 0). Operation in hazardous areas from –20 °C to +65 °C is possible. The devices are designed for gas and dust explosion protection (G/D) and can naturally also be used outdoors (type 4 enclosure, UV resistant).
We look forward to hearing from you!
Contact Us
| 2- or 4-wire: | 2 Wire |
|---|---|
| Channels: | 1 channel |
| Communication (Output, Digital): | HART |
| Display: | LC display with colored backlighting |
| Measurement Parameter: | Conductivity (inductive) |
| Sensor Connection: | Memosens |
| permanently installed / portable: | permanently installed |
| Current outputs: | 1x 4 … 20 mA |
| Explosion protection: | Ex, hazardous area Zone 1 |
| Enclosure: | Molded enclosure, PBT/PC, glass-reinforced |
| Power Supply: | 24 V AC/DC |
| Approvals: | ATEX, FM, IECEx, Inmetro, NCC, KCs, NEPSI |
| Product Line: | Stratos, Stratos Pro |
Downloads
Manuals
Brochures
Data Sheets
Certificates
