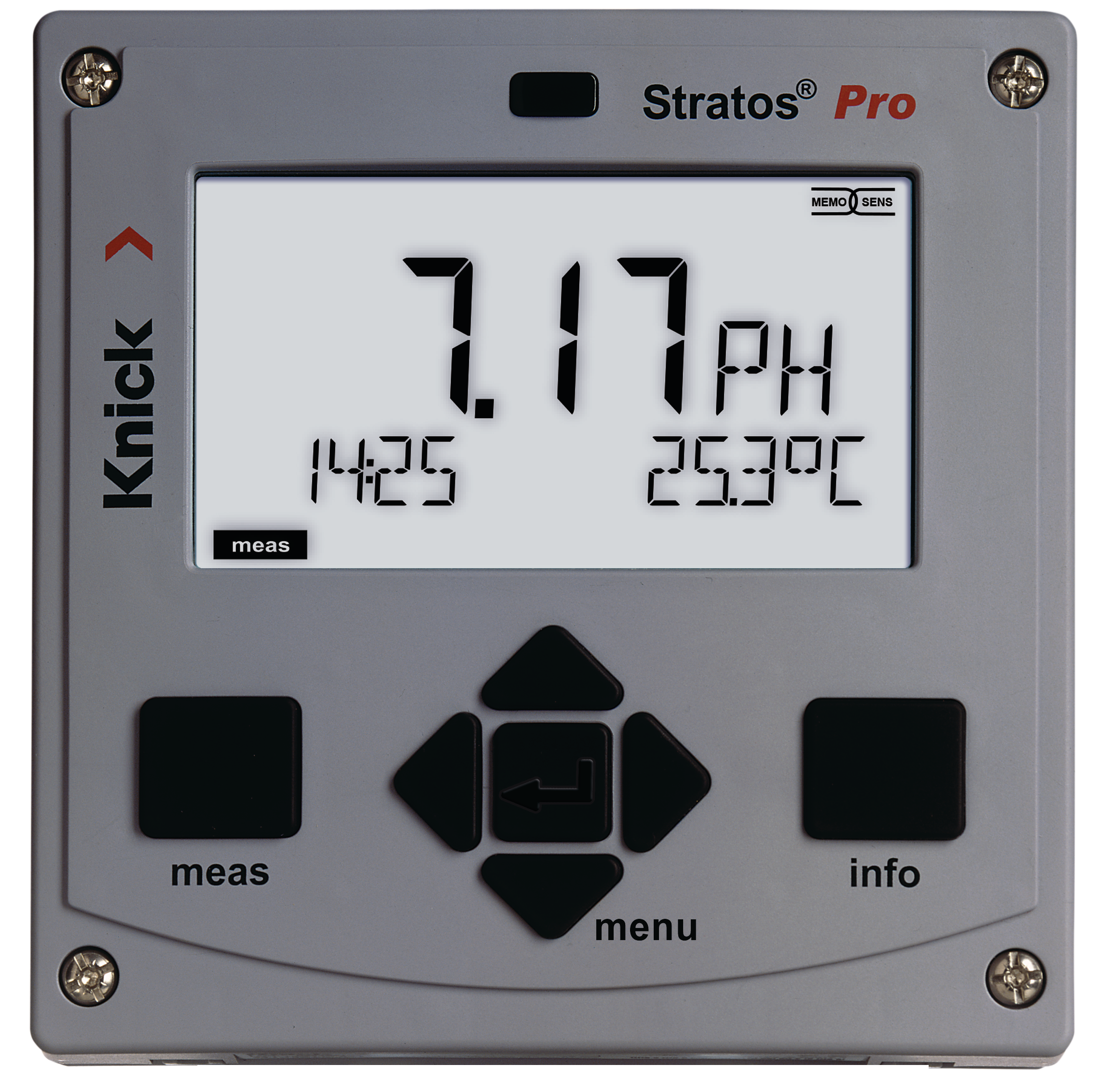

Stratos Pro A201 PH pH/ORP Transmitter | Analog Sensors | Ex Zone 2 | HART | 2x 4 ... 20 mA Outputs
Product number:
A201B-PH-1
Description
Stratos Pro A201 PH pH/ORP Transmitter | Analog Sensors | Ex Zone 2 | HART | 2x 4 ... 20 mA Outputs
2-wire-transmitter for pH and ORP measurement
- Operation in hazardous areas
- Two current outputs
- Digital communication: HART
- Intuitive operation with color-coded user guidance
- IP 66/67, NEMA 4X protection
- Automatic sensor identification
- Sensor diagnostic with wear indication, remaining lifetime, CIP/SIP counter and adaptive calibration timer
- High-contrast widescreen display with colored backlighting
- Protective pane made of safety glass
- One analog input (4 ... 20 mA) e.g. for external pressure compensation
- Two parameter sets
- Two digital inputs:
- External HOLD activation
- External switching between parameter set
- Logbook (200 entries)
Outstanding properties
A number of outstanding technological properties make the Stratos Pro series the new benchmark for 2-wire analyzers. Colored screen backlighting has been implemented for the first time in this device class, with the lowest possible power consumption.
A number of outstanding technological properties make the Stratos Pro series the new benchmark for 2-wire analyzers. Colored screen backlighting has been implemented for the first time in this device class, with the lowest possible power consumption.
Wide Range of Functions
2 digital inputs are provided, as well as an analog input plus a second current output for another measured value.
2 digital inputs are provided, as well as an analog input plus a second current output for another measured value.
We look forward to hearing from you!
Contact Us
2- or 4-wire: | 2 Wire |
---|---|
Channels: | 1 channel |
Communication (Output, Digital): | HART |
Current ouput: | 2x 4 … 20 mA |
Display: | LC display with colored backlighting |
Measurement Parameter: | pH/ORP |
Sensor Connection: | Analog |
permanently installed / portable: | permanently installed |
Current outputs: | 2x 4 … 20 mA |
Explosion protection: | Ex, hazardous area Zone 2 |
Enclosure: | Molded enclosure, PBT/PC, glass-reinforced |
Product Line: | Stratos, Stratos Pro |
