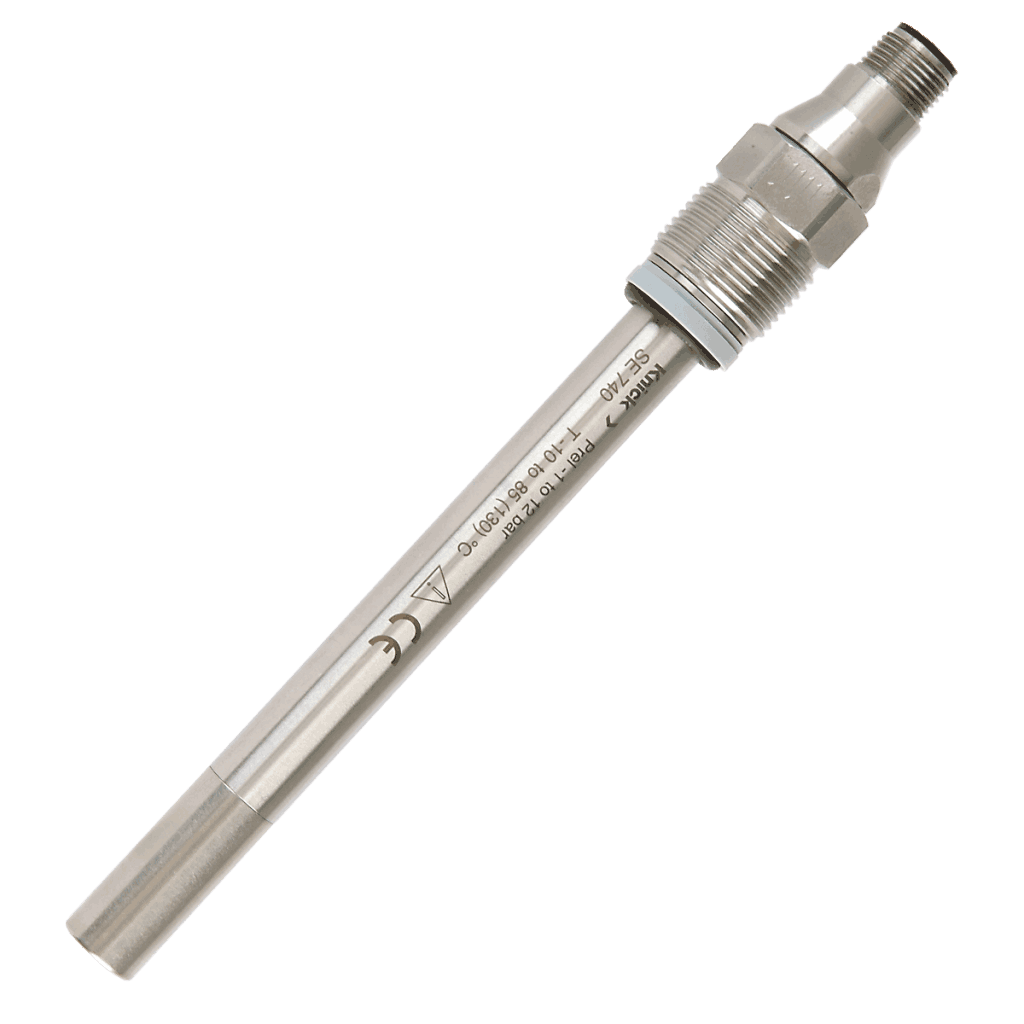

Sensor de oxígeno óptico SE 740 | M12 (8 pines) | 120 mm | Para zonas higiénicamente exigentes
Número de producto:
SE740/1
Description
Sensor de oxígeno óptico SE 740 | M12 (8 pines) | 120 mm | Para zonas higiénicamente exigentes
Medición de oxígeno óptico basada en la tecnología de desactivación fluorescente
- Principio de medición independiente del caudal
- No requiere polarización
- Tapa del sensor reemplazable
- Control de desgaste integrado
- Acero inoxidable 1.4435, Certificado de inspección 3.1, Ra < 0,4 μm
- Materiales que cumplen con la FDA
- Comunicación digital
Sensor de oxígeno óptico independiente del caudal con respuesta rápida. Ideal para mediciones en entornos higiénicos exigentes. Esterilizable por vapor, autoclavable y apto para CIP.
Aplicaciones
Alimentación, farmacia, fermentación y procesos
¡Estaremos encantados de atenderle!
Contacto
| Conector enchufable: | M12 (8 clavijas) |
|---|---|
| Conexión de proceso: | PG 13,5 |
| Drift at 25 °C and constant conditions: | < 1 % per week |
| Longitud: | 120 mm |
| Parámetro de medición: | Oxígeno |
| Piezas húmedas del sensor: | Acero inoxidable 1.4435, silicona FDA, EPDM FDA |
| Pressure range Prel: | –1 ...12 bar |
| Rango de medición : | DO: 4 ppb ... 25 ppm, pO₂: 0,1 … 600 mbar |
| Rango de temperatura: | Mediciones de oxígeno: 0 … +85 °C, –10 … +140 °C (esterilización por vapor) |
| Rugosidad de la superficie del cuerpo de acero:: | Ra < 0,4 μM (N5) |
| Sensor de temperatura: | sí, para compensación de la temperatura |
| Measuring Principle: | Optical |
| Max. CO₂ partial pressure: | 12 bar |
