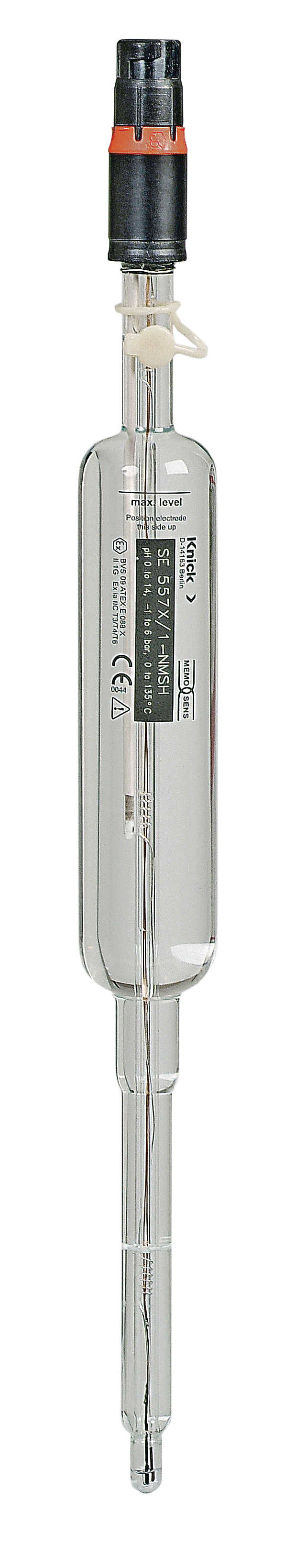

Sensor de pH SE557 | Memosens | 120 mm | Ex | Vidrio Omega | Para medios de proceso con exigencias para una estabilidad de medición elevada
Número de producto:
SE557X/1-NMSH
Description
Sensor de pH SE557 | Memosens | 120 mm | Ex | Vidrio Omega | Para medios de proceso con exigencias para una estabilidad de medición elevada
Para exigencias especiales y mediciones de alta precisión con electrolito líquido rellenable, digital, con tecnología Memosens
- Vidrio Omega: impedancia elevada para mediciones incluso a altas temperaturas, error alcalino reducido, apto para CIP/SIP
- Precisión elevada
- Rango de medición muy grande para el valor de pH y la temperatura
- Electrolito líquido rellenable
- 2 diafragmas de cerámica
- Limpieza automática mediante presurización
- Sensor de temperatura integrado
- Aislamiento galvánico perfecto mediante la tecnología Memosens
- La humedad no afecta a la conexión enchufable
- Posibilidad de precalibración en el laboratorio
- Transmisión de datos digital
- Diagnóstico de los sensores integrado
Eliminación amplia de los problemas comunes en el diafragma, por tanto, ofrece una precisión elevada de la medición tanto en el agua ultrapura como en los medios extremadamente sucios y a altas temperaturas.
Con reserva de electrolito líquido integrado y rellenable. Dos diafragmas de cerámica, limpieza automática mediante presurización (salida de electrolito continua).
¡Estaremos encantados de atenderle!
Contacto
| Conector enchufable: | Memosens |
|---|---|
| Diafragma: | Cerámica (2 x) |
| Longitud: | 120 mm |
| Material del sensor : | Vidrio Omega |
| Parámetro de medición: | pH |
| Presión relativa: | -1 … 6 bar |
| Protección contra explosiones: | Ex |
| Rango de medición : | 0 … 14 pH |
| Sistema de referencia: | Ag/AgCl, electrolito líquido rellenable |
| Temperatura: | -20 … 100 °C |
Descargas
Manuals
Prospectos
Fichas técnicas
Certificados
Safety guides
