Medición de tensión, corriente y temperatura para la fuente de alimentación de corriente continua

Para la medición fiable y precisa de la tensión y la corriente en instalaciones de corriente continua, desde hace décadas Knick suministra transductores con aislamiento galvánico. Durante este tiempo, la empresa se ha convertido en el líder mundial en este sector. Por este motivo, Knick también es el primer socio para proveedores y operadores de instalaciones de corriente continua cuando se trata de afrontar retos técnicos especiales, por ejemplo, opciones de supervisión del desgaste para el mantenimiento preventivo.

¿Por qué Knick?

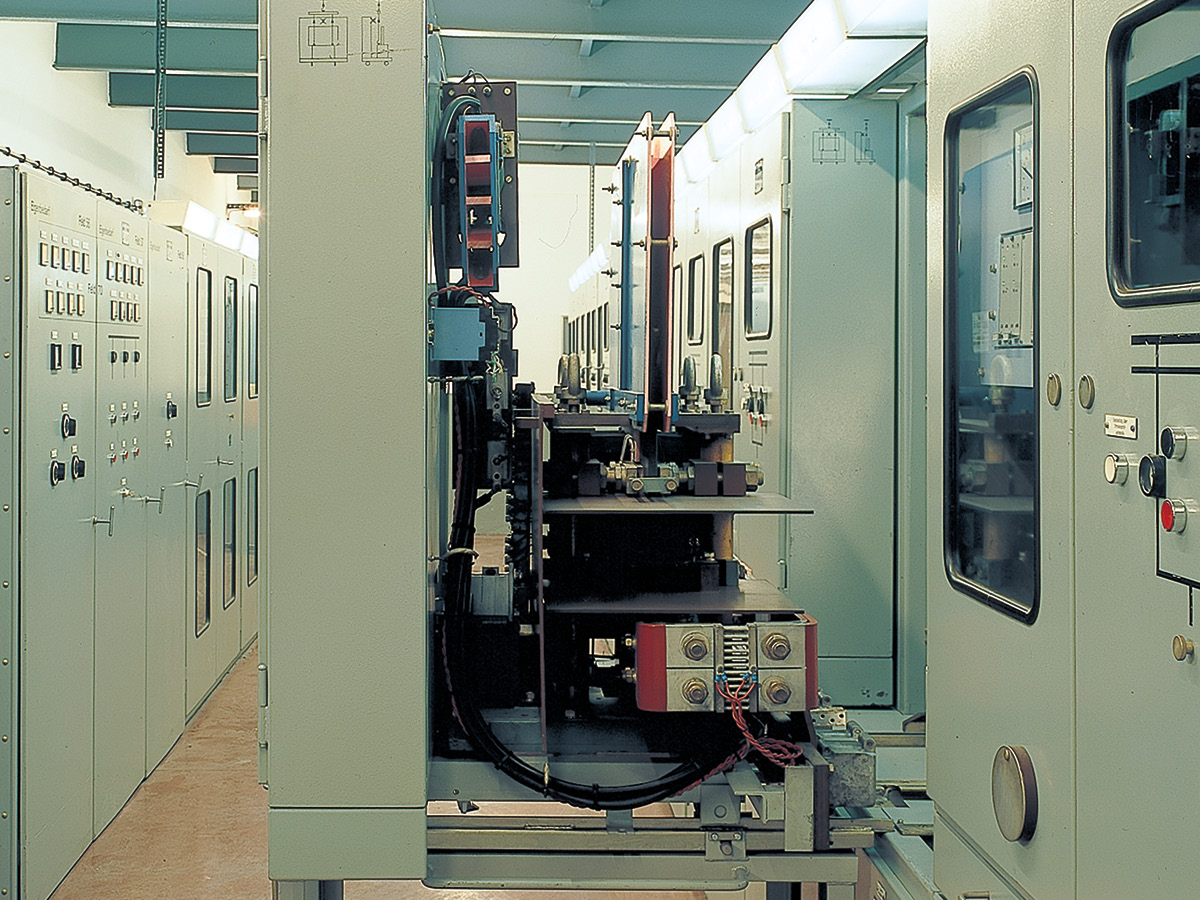

Los dispositivos de protección en centrales transformadoras deben medir la corriente y la tensión con el fin de ejecutar algoritmos para la detección de cortocircuitos. Para ello, se requieren transformadores de medida de alta tensión que miden de forma rápida y precisa, y que al mismo tiempo soportan cargas elevadas. Además, deben soportar tensiones entre 750 y 3000 V CC, incluyendo sobretensiones transitorias, por ejemplo, durante la recuperación de energía en el frenado de los trenes. En estas aplicaciones de alta tensión, la protección de las personas y los dispositivos es fundamental. Por consiguiente, el gran aislamiento galvánico de los dispositivos de Knick es un factor importante a la hora de elegir los transformadores de medida.

Productos relacionados

P41000 Transductor de alta tensión/transductor | conmutables calibrados

Número de producto:

P41000

P41000AG Transductor de alta tensión/transductor | conmutables calibrados

Número de producto:

P41000AG

P42000 Transductor de alta tensión/transductor | conmutables calibrados

Número de producto:

P42000

P52000 VPD Transductor de alta tensión/transductor

Número de producto:

P52000VPD

P44000 Transductor de temperatura con alto aislamiento | Entrada de sensor Pt100

Número de producto:

P44000

P29000 Transductor de alta tensión/transductor | conmutables calibrados

Número de producto:

P29000

Industrias y aplicaciones relacionadas

Medición de alta tensión y corriente en vehículos ferroviarios

Knick ofrece transductores de alto aislamiento para mediciones de tensión y corriente. El P45000 es el transductor de alta tensión de mayor ahorro de espacio con SIL 2 para la medición de corriente continua a bordo de todos los trenes accionados por corriente continua y corriente alterna.

Industria ferroviaria

Mediciones eléctricas en subestaciones ferroviarias de corriente continua y en vehículos ferroviarios; conversión y reproducción de señales de velocidad en la industria ferroviaria

Folleto sobre la industria ferroviaria

Vista general de las aplicaciones y las soluciones de producto específicas del sector ferroviario

Descargar ahora
