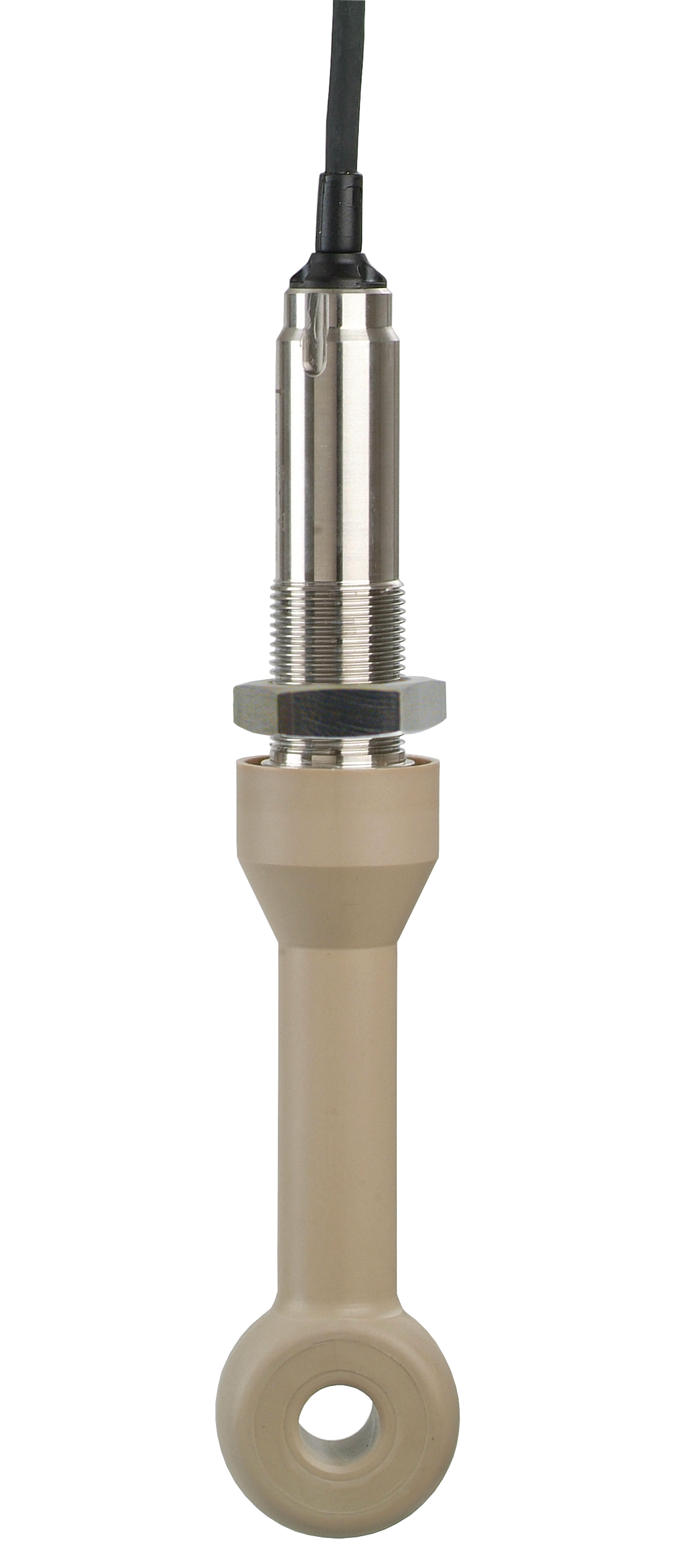

SE655 Toroidal Conductivity Sensor | Memosens | 3 m Fixed cable | PEEK | High chemical resistance
Description
Universal and precise conductivity sensor with high chemical resistance. Digital with Memosens protocol.
- Process-wetted material: PEEK
- Sturdy design
- Resistant to contamination and fouling
- Range of six decades
- Steam sterilizable and CIP capable
- Inductive measuring principle, full galvanic isolation of sensor coils from process medium
- Digital with Memosens protocol
The SE655N digital toroidal conductivity sensor is a sturdy and corrosion-resistant sensor that, thanks to its high chemical resistance, is particularly suitable for applications in the chemical industry.
A combination of a large sensor opening and dirt-repellent material prevents blockages and deposits in media with a high pollution degree. The inductive measuring principle enables full galvanic isolation of the measurement from the medium.
The sensor is an all-rounder, suitable for a multitude of applications with a range covering six decades. Equipped with Memosens protocol as a digital version, it offers considerable process and data security, and ensures reliable data recording. Also for hazardous areas (SE655X-GEFTT0AM).
Applications
Concentration measurement of acids and bases, online quality monitoring of chemical products in tanks and pipes, phase separation of product mixtures, paper manufacturing (high fiber concentration), heavily soiled media and wastewater, fouling and oil-contaminated media, brine, regeneration of ion exchangers.
Nous attendons avec impatience votre réponse!
Nous Contacter
| Différence de mesure: | ± (0,005 mS/cm + 0,5 % de la valeur mesurée) | (-20 ... +100 °C), ± (0,010 mS/cm + 0,5 % de la valeur mesurée) | (> 100 °C) |
|---|---|
| Facteur de cellule: | 1,98 /cm (≥ 30 mm de distance de la paroi) |
| Montage: | G ¾" |
| Paramètres de mesure: | conductivité (induktive) |
| Plage de mesure: | 0 … 2000 mS/cm |
| Principe de mesure: | Inductif |
| Protection: | IP 68 (sonde montée avec joint d'origine / EN 60529) |
| Protection contre les explosions: | pas d'Ex |
| Raccordement process: | G 3/4“ (écrou surplat 36 et joint FKM (Viton) inclus dans le contenu) |
| Résolution: | 0,002 µS/cm |
| Sonde de température: | Pt1000 (Klasse A nach IEC 60751) |
| Température ambiante: | –20 ... +60 °C |
| Température de stockage: | –20 ... 80 °C |
| Transmission du signal: | Memosens-Protokoll |
| Relative process pressure: | 0 ... 20 bar (cf. diagramme pression-température) |
| Fixed cables with ferrules: | 3 m |
| Temp. response time t90: | env. 7 min |
Téléchargements
Brochures
Fiches techniques
Notre service
Utilisé dans les processus ou les applications
Produits apparentés

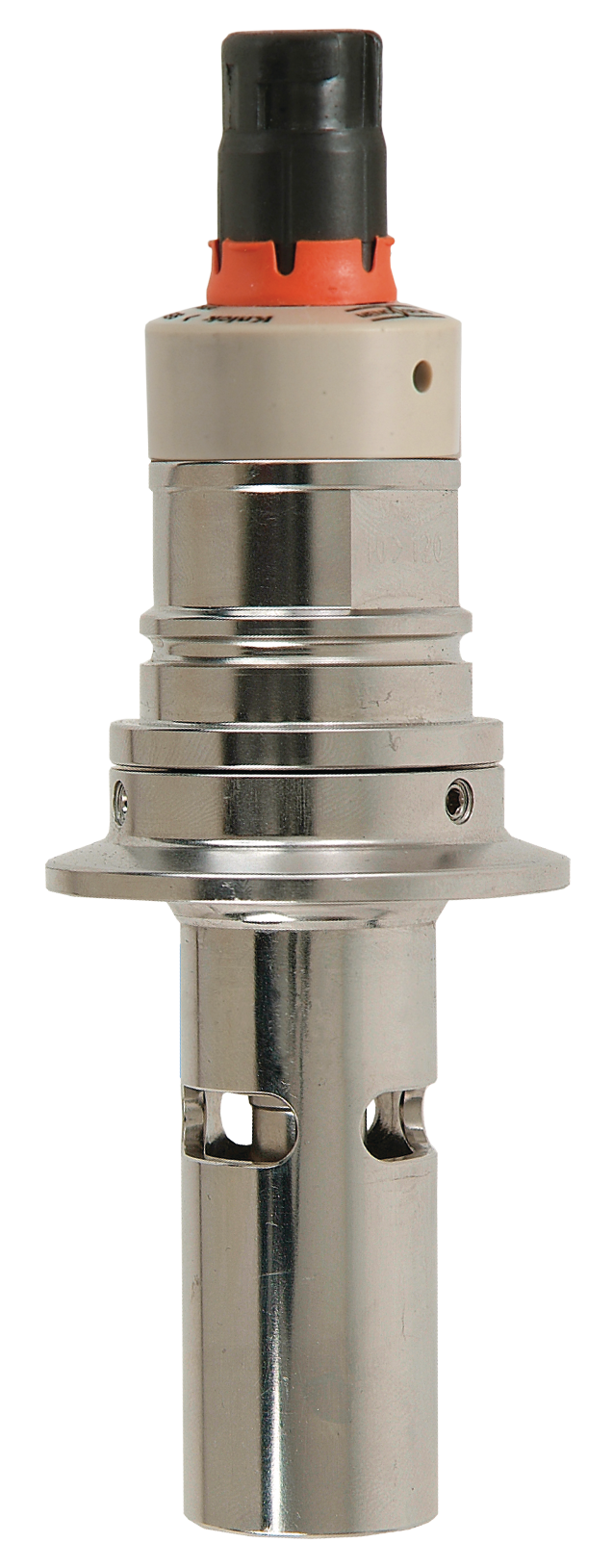

SE605H-XMSJ

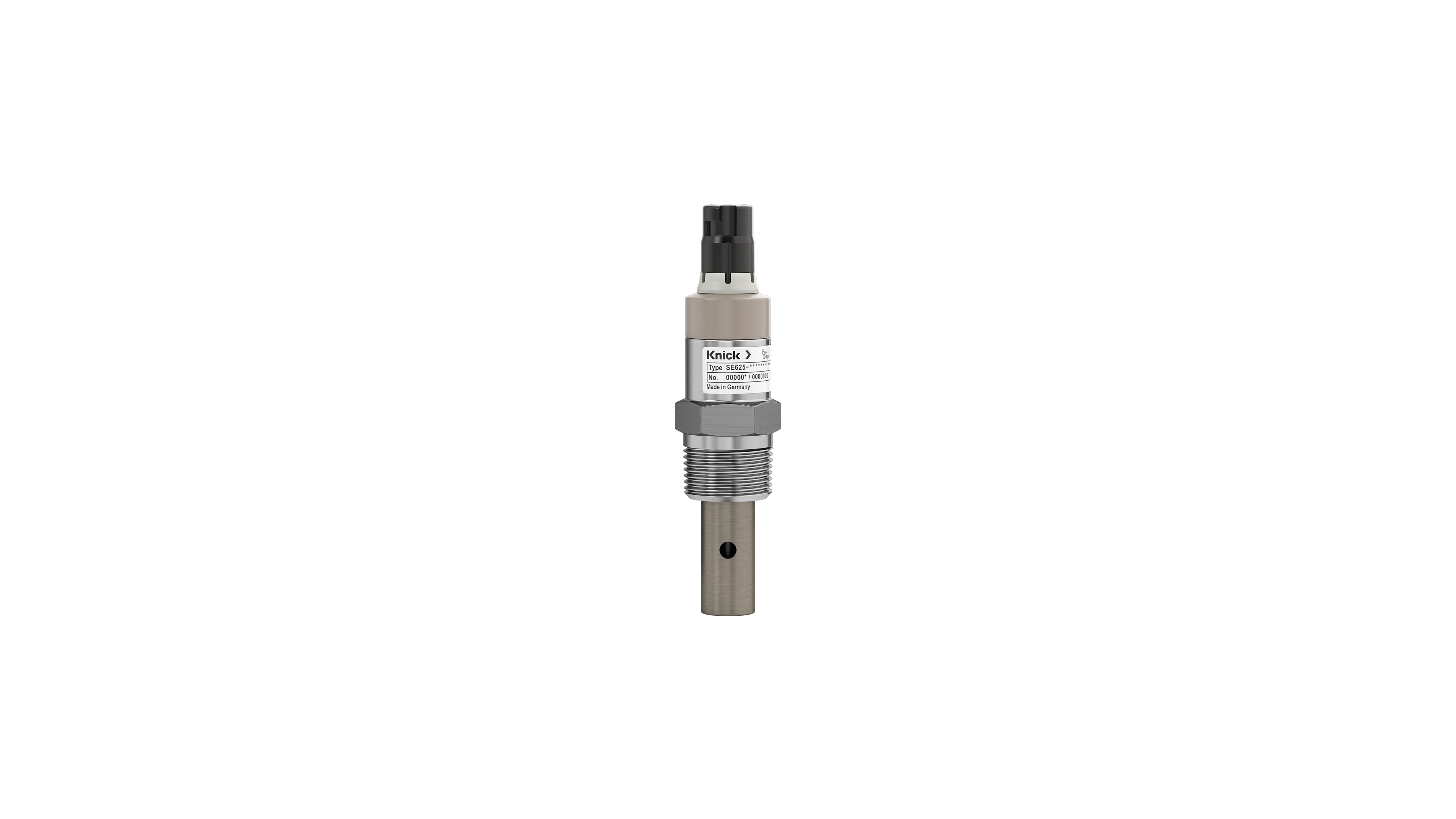

SE625-MS

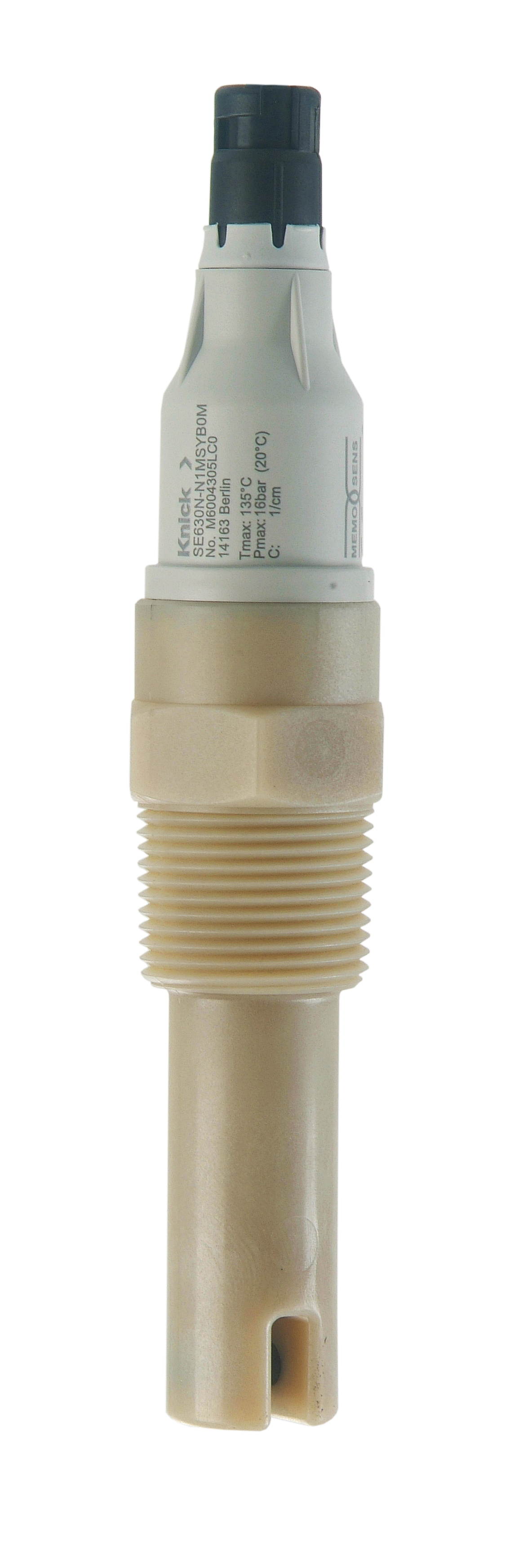

SE630N-N1MSYB0M
