P43000 Amplificatore di isolamento ad alta tensione / Trasmettitore | Commutabile in modo calibrato

Codice prodotto: P43000
Descrizione Dettagli tecnici Scaricamento Utilizzato nei processi o nelle applicazioni Post rilevanti del blog

Description

P43000 Amplificatore di isolamento ad alta tensione / Trasmettitore | Commutabile in modo calibrato

Amplificatore universale di isolamento ad alta tensione. Correnti di ingresso fino a Iin = 5 A.

  • Amplificatore universale di isolamento ad alta tensione
    per la conversione di correnti di ingresso fino a 5 A in segnali di uscita impressi da ±20 mA, ±10 V o 4 … 20 mA.
  • La nuova tecnologia TransShield
    consente di adottare armadi modulari estremamente compatti
  • Tensioni di lavoro fino a 3600 V AC/DC
  • Protezione contro le correnti corporee pericolose
    grazie all'isolamento sicuro in conformità alla norma EN 61140 fino a 1800 V AC/DC
  • Tensioni di prova fino a 15 kV AC
  • Eccellenti proprietà di trasmissione:
    • Errore di guadagno < 0,3 %
    • Frequenza di taglio 5 kHz (filtro passa-basso/frequenza di taglio inferiore su richiesta)
    • Tempo di salita T90 circa 110 µs
  • Straordinaria flessibilità grazie a
    • Commutazione calibrata di fino a 16 campi di ingresso/uscita (fino a 2200 V di tensione di lavoro)
    • Fino a 16 intervalli di misura personalizzati
    • Alimentatore ad ampio spettro da 20 V a 253 V AC/DC
  • Funzionamento sicuro
    anche con alimentazione instabile
  • Assenza di guasti distruttivi
    in caso di errata tensione di rete
  • I tipi commutabili
    riducono il numero di varianti e quindi i costi di stoccaggio
  • Insensibile grazie
    all'Incapsulamento sotto vuoto
  • Meccanicamente stabile
    per il funzionamento su navi, treni e veicoli terrestri
  • Garanzia di 5 anni

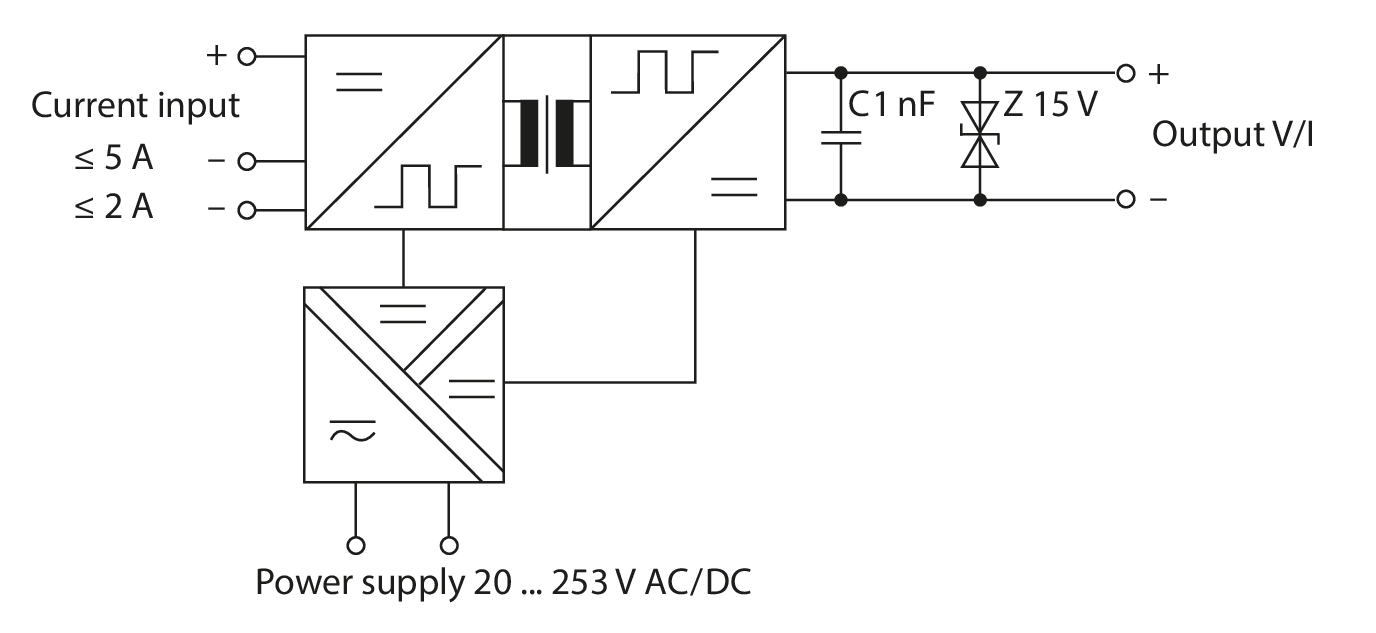

Gli amplificatori di isolamento P43000 sono progettati per misurazioni dirette di correnti fino a 5 A (DC). Isolano in modo sicuro i potenziali elevati del circuito di ingresso.

Le distanze di distacco sono progettate per alte tensioni continue fino a 3600 V AC/DC e sovratensioni transitorie fino a 20 kV. La protezione contro le correnti corporee pericolose è garantita da un isolamento sicuro in conformità alla norma EN 61140 dall'ingresso all'uscita e all'alimentazione elettrica.



Non vediamo l'ora di ascoltarvi!
Contatto

Dettagli tecnici

Separazione del potenziale AC/DC: Fino a 3.600 V
Temperatura ambiente di esercizio: –10 ... 70 °C, –40 ... 75/85 °C
Funzione: Misurazione di correnti su un alto potenziale
Ingresso: 0 ... (±)0,1 A fino a 0 ... (±)5 A
Uscita: 0 ... (±)10 V, 0 ... (±)20 mA, 4 ... 20 mA, Valori di picco o TRMS
Tensione di prova: 10/15 kV AC
Alimentazione di tensione: 22 ... 230 V AC/DC
Frequenza limite: Frequenza limite a 5 kHz, frequenza limite inferiore su richiesta
Dimensioni (largh. x lungh. x alt.): 45 x 90 x 118 mm (D2)
Caratteristiche speciali: MTBF eccezionalmente alto pari a 2.165 anni, sulla base di dati sul campo, Versioni commutabili o personalizzate
Categoria di prodotto: Amplificatore di isolamento ad alta tensione

Scaricamento

Manuals

[17381] User Manual
P43000 - High Voltage Transducer
Version 06

Brochure

[14160] Opuscolo
Panoramica dei prodotti Isolatori

Schede tecniche

[1513] Data Sheet
VariTrans P 41000, P 42000 (inkl. D2), P 43000
Product Description | Specifications | Product Range

Certificati

[14140] Quality Report (MTBF)
Document No. TX180416A
Failure Rate of Series P40000
[12071] Certificate of Compliance (UL)
P41000, P42000, P43000, P44200, P51000, P52000
MOTOR CONTROLLER ACCESSORIES OVER 1500 VOLTS
No. UL-US-L356768-11-22503102-1 | 202406-28
[11463] EU Declaration of Conformity (DE, EN, FR)
Series VariTrans P4x000 (D*-nnnn/D*AG-nnnn/D*TRMS-nnnn)
No. EU221209A | 2023-11-29

Software

[12154] Software (.zip)
ePLAN P8 Produktmakros
