SE559 pH Sensor | Memosens | 120 mm | Ex | For water and analytical chemistry

길이
제품 번호: SE559X/1-NMSN
설명 기술 세부 정보 다운로드 프로세스 또는 애플리케이션에서 사용 관련 블로그 게시물

Description

SE559 pH Sensor | Memosens | 120 mm | Ex | For water and analytical chemistry

For uncomplicated measurement in water and analytical chemistry, digital, with Memosens technology.

  • No influence of humidity in the connector
  • Precalibration in the lab
  • Digital data transfer
  • Integrated sensor diagnostics
  • Low maintenance, no refilling of electrolyte
  • Integrated temperature detector
  • Calibrated annular junction
  • Independent of flow
  • Alpha glass, medium impedance, universal glass, fluoride resistant

The calibrated annular junction enables precise measurements in process media virtually without influence of flow.The large contact surface of the junction minimizes problems caused by contamination.

The sensor is ideal for processes for which liquid-electrolyte sensors should be used, but where maintenance is impossible for a longer period of time.

Applications
Water supply and distribution, chemical processes.

여러분의 의견을 기다리겠습니다!
문의하기

기술 세부 정보

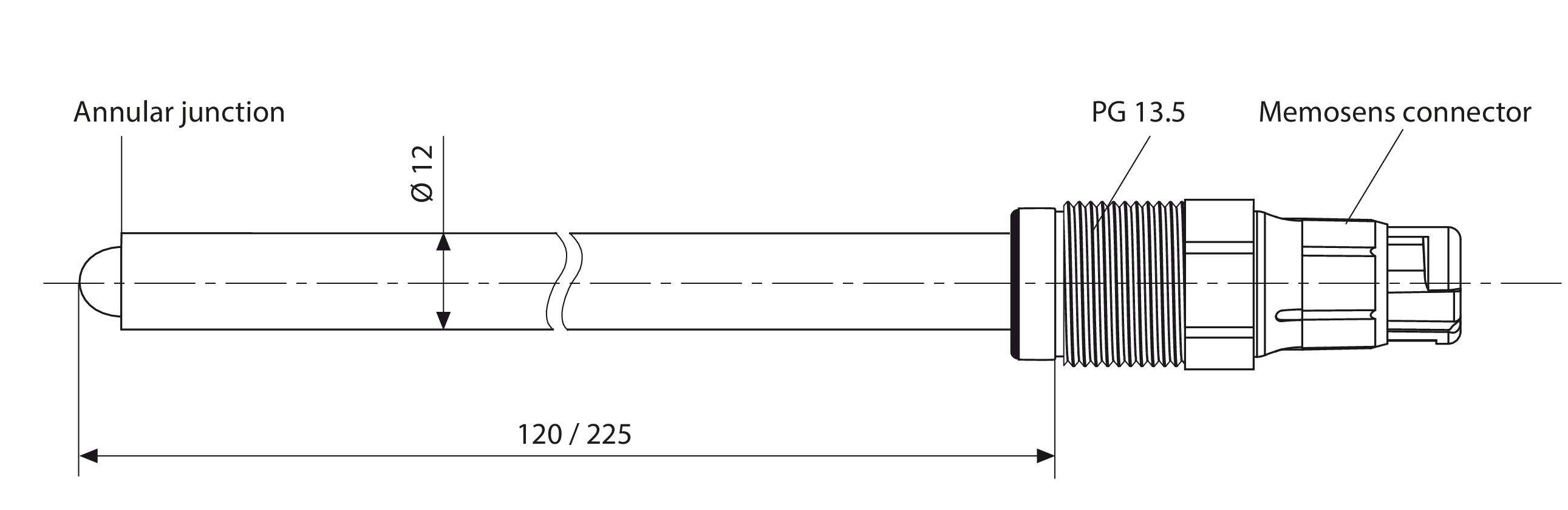

개방구: 교정된 링 홈
공정 체결: PG 13.5
길이: 120 mm
상대 압력: 0 … 6 bar
센서 재질: 알파 유리
온도: –5 … 100 °C (23 ... 212 °F)
온도 감지기: NTC 30 kΩ
참조 시스템: Ag/AgCl, 폴리머 타입의 전해질
측정 범위: 0 … 14 pH
측정 파라미터 : pH
폭발 방지: Ex
플러그 헤드: Memosens

다운로드

사용 설명서 (매뉴얼)

[16286] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09
[2589) Instructions for Use
SE559X/*-NMSN
Version 03
[14165] User Manual (DE, EN)
ZU 1054 Sensor Protection (Sensorschutz)

브로셔

[13209] 브로셔
Memosens@Knick
[13395] 브로셔
센서류 - pH/ORP,전도도 또는 용존 산소측정용. 디지털 또는 아날로그

데이터 시트

[2581] Data sheet
SE559X/*-NMSN Memosens pH Sensor
Product Description | Specifications | Product Range

인증서

[14685] Certificate of Conformity (FM)
No. FM17US0208X | 2019-05-27 | USA
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[14690] Certificate of Conformity (FM)
No. FM17CA0105X | 2019-05-27 | Canada
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[11064] EU Declaration of Conformity
No. EU210427A | 2021-04-27
Memosens Sensors | Types SE 5..X..-.MS., SE604X-MS**, SE605….., SE6**X**MS, SE7**…
[16262] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0355X
SE55*Xl*-NMSN, SE605H-XMS****
[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204

Safety guides

[11048] Material Safety Data Sheet
CaliMat buffer solution pH 4,00
[11045] Material Safety Data Sheet
CaliMat buffer solution pH 7,00
[11046] Material Safety Data Sheet
CaliMat buffer solution pH 9,00
[11049] Material Safety Data Sheet
CaliMat buffer solution pH 2,00
[11044] Material Safety Data Sheet
CaliMat buffer solution pH 12,00

제어 도면

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
