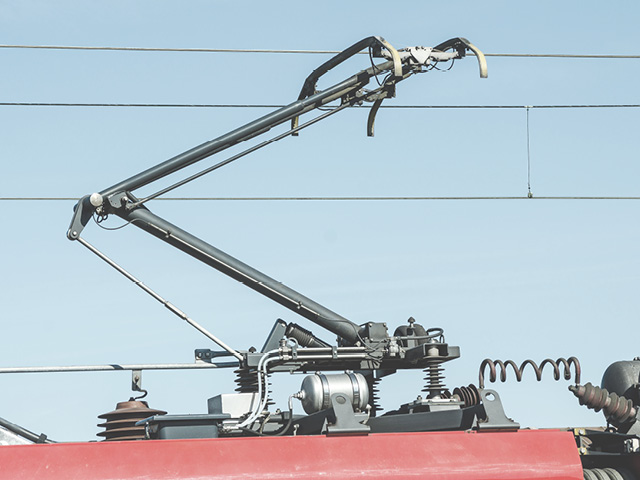

铁路车辆上的高压和电流测量

主要应用事实

领域

铁路行业 | 铁路车辆

应用

监测和控制牵引电机，监测牵引变流器或车载逆变器中的母线电压

测量参数

高达 ±4500 V DC / ±3000 V AC，连续隔离电压高达 4800 V AC/DC，隔离测试电压高达 20 kV AC

主要要求

SIL2/SIL3 安全

最紧凑的铁路车辆用高压变送器

P45000 系列变送器可用于在重型车辆、尤其在铁路车辆上测量高直流和交流电压。应用范围包括监测和控制牵引电机、监测牵引变流器或车载逆变器中的母线电压。

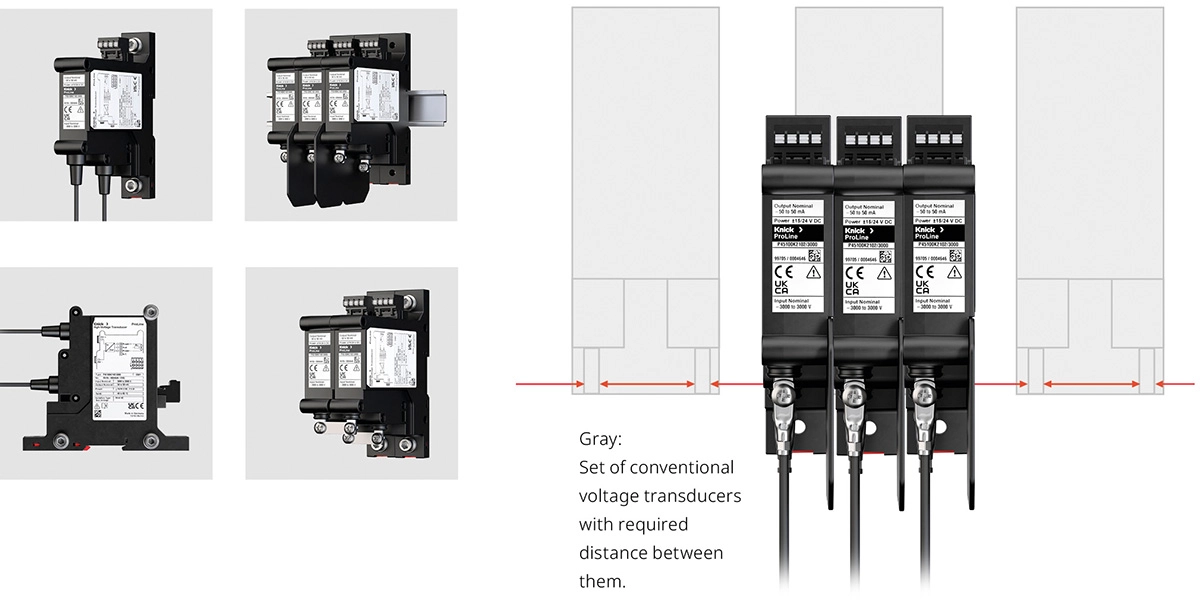

电压测量输入与输出和电源高度隔离。电流输出与市面上常见的控制输入兼容。外壳的安装方式灵活：直立或者平卧，螺丝固定，或者卡装在 35 mm DIN 导轨上。这些设备甚至可以堆叠安装，即使在很窄的空间内也能实现。

此外，产品支持运行具有功能安全要求的各种应用，这在同类产品中尚属首次。这款高压变送器已获认证，可用于 SIL 2 系统和 SIL 3 冗余运行。例如能可靠识别是否存在危险高电压。

为何选择 Knick?
P45000 是全球首款通过 SIL 2/3 功能安全认证的高压 SIL 变送器。 可以堆叠安装，空间需求极小，安装方式灵活：DIN 导轨，平卧或直立

在铁路车辆上进行测量的产品亮点

P45000 – 高压测量

P45000 高压变送器专为包括柴油电动机车在内的所有直流和交流铁路车辆而设计，可测量高达 4500 V DC 和 3000 V AC 电压。测试电压 20 kV AC，增强隔离电压高达 4800 V DC 和 3700 V AC

P51000 – 通过分流电阻测量电流

高压变送器 P51000 可通过从一安培到千安培的分流电阻实现过载安全的电流测量。即使是强电磁场也不会影响测量结果。这样就能高精度检测电流。

P52000 – 电压测量

结构紧凑的高压变送器，用于高达 4800 V 的电压测量。高压触点和接线端子都有封装。与其他部件之间不存在相互作用风险。在端子台之间不需要额外的空间：P52000 能够绝对安全工作。

P52000VPD – 电压检测器

电压检测器 P52000VPD (Voltage Presence Detector) 可检测 50 至 4200 V 之间的电压。将输入信号与阈值进行比较，得到的二进制信息被电隔离并传输到输出电路。如果输入电压超过设置的阈值，半导体继电器就会打开，并发出输入端存在电压的信号。
