在线检测高压加热器 (HVH)

高压加热器 (High Voltage Heater, HVH) 用于控制车辆的内部温度以及保护和管理电池等各种车载系统。
由于 HVH 将直流电无损耗转变为热量，制造商经常采用该技术。根据车辆（小型汽车、公共汽车、卡车等）开发各种工作电压的 HVH，加热功率高达 10 kW。

主要应用事实

领域


在不同生产阶段在线检测高压加热器

应用


检查电子控制装置的功能

测量参数


高达 100 至 900 V DC 的电压和相应的电流

主要要求


根据被检产品施加高达 900 V DC 的电压

在安装/在线检测过程中必须安全、精确测量高电压

需要针对不同的应用灵活选择输入电压

电子控制装置功能检查

应用说明

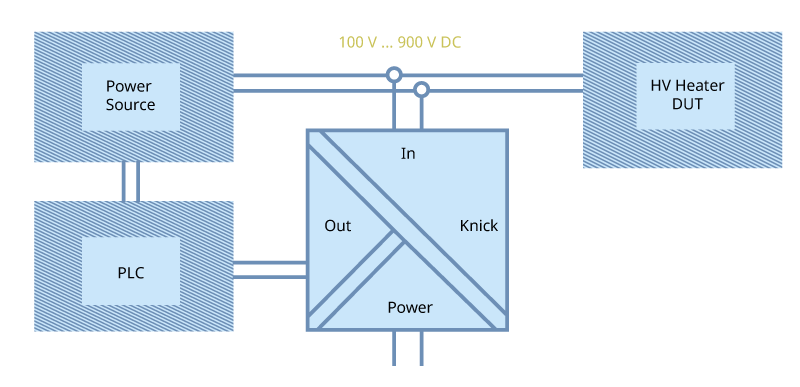

HVH 的生产过程包括许多步骤，其中一些必须手动完成。在各个生产阶段都要进行不同的在线检测，为此根据加热器类型对高压加热组件施加 100 至 900 V DC 电压。
测量该电压和相应的电流，以便检查电子控制装置的功能。考虑到危险的人体电流，在检测过程中不得接触被检件。

应用的要求

为了获得可靠的检测结果，应注意使用精确可靠的测量设备，因为在生产环境中使用实验室设备并不总是切实可行。在下线试验台以及开发阶段的试验台中，均可找到适合工业应用的优质设备。这意味着，经过工业验证的高品质设备不仅用于下线试验台，也在开发阶段使用。

为何选择 Knick?
Knick P29000 高压隔离放大器可以测量高达 1000 V DC 的电压。增益误差小于测量值的 0.2%，并通过工作电压为 1000 V AC/DC 的 3 端口隔离（基本隔离）保证精度和安全。使用 5.4 kV AC 在输入和输出/电源之间进行高压检测，以验证隔离无瑕疵。通过设备前保护盖后面的 DIP 开关设置输入和输出测量范围。
