SE503 pH 传感器 | VP | 120 mm | 聚砜杆 | 适用于供水和废水处理

Description

SE503 pH 传感器 | VP | 120 mm | 聚砜杆 | 适用于供水和废水处理

适用于供水/废水领域的标准 pH 传感器,坚固耐用,维护工作量小

  • 维护工作量小,电解质不用补充或加压
  • 内置温度探头
  • 2 个陶瓷隔膜
  • 采用聚砜塑料杆,坚固耐用
  • 集成防护面板
  • VP 插接头

SE503 pH 传感器采用聚砜塑料杆,坚固耐用,不易脏污。该过程传感器还适用于低温环境,pH 测量可靠,成本低,维护工作量小。

我们期待您的来信
联系我们

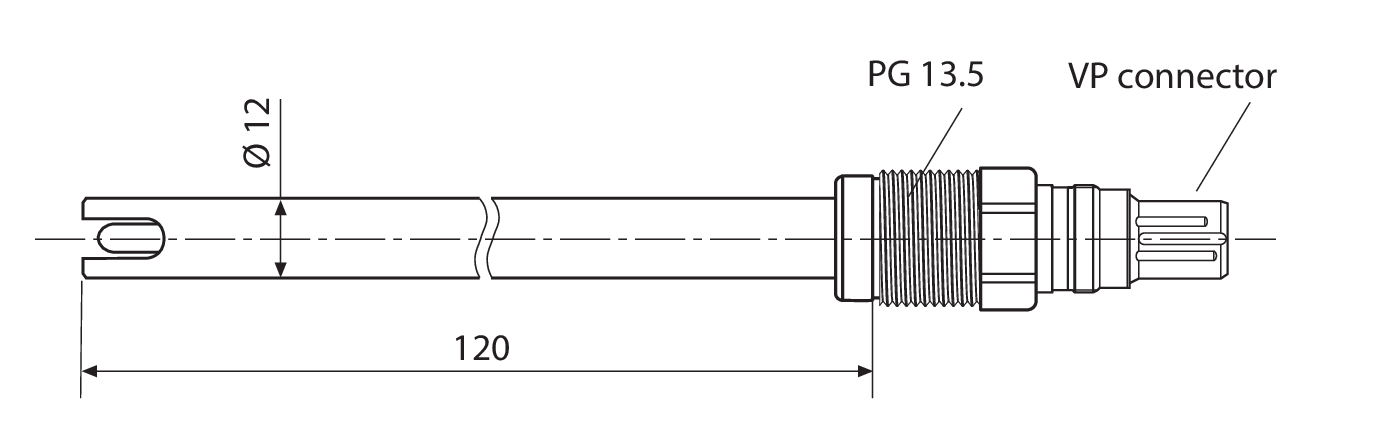

技术细节

参考系统: Ag/AgCl 固体聚合物
工艺连接: PG 13.5
插接头: VP (VarioPin)
是否防爆: 非 Ex
杆材料: PSU (Polysulfon)
测量参数: pH
测量范围: 0 … 14 pH
温度: –5 … 80 °C ( 23 ... 176 °F)
温度检测器: Pt1000
相对压力: 0 ~ 2 bar
长度: 120 mm
隔膜: 陶瓷 (2x)

下载

操作说明书

[12977] User Manual DE, EN)
SE503N-NVPN pH Sensor
Version 01

数据手册

[13254] 数据手册
pH 传感器 SE503
产品描述 | 规格 | 产品范围

证书

[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204
[14516] EU Declaration of Conformity (DE, EN, FR)
No. EU210621A | 2021-06-21
Analog Sensors, non Ex
