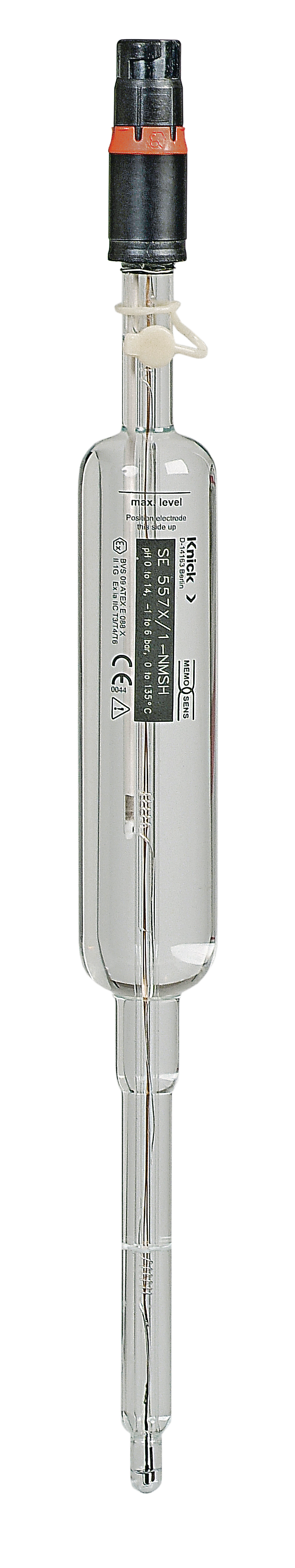

SE557 pH 传感器 | Memosens | 120 mm | 防爆 | Omega 玻璃 | 适用于对测量稳定性要求较高的过程介质
商品编号:
SE557X/1-NMSH
Description
SE557 pH 传感器 | Memosens | 120 mm | 防爆 | Omega 玻璃 | 适用于对测量稳定性要求较高的过程介质
满足特殊要求，测量精度高，液体电解质可补加，数字式，采用 Memosens 技术
- Omega 玻璃：高阻抗，适用于高温应用，碱度误差极低，支持 CIP/SIP
- 高精度
- pH 值和温度测量范围非常广
- 液体电解质可补加
- 2 个陶瓷隔膜
- 通过加压实现自清洁
- 内置温度探头
- 采用 Memosens 技术，出色的电气隔离
- 插拔连接不受潮气影响
- 可在实验室中预先校准
- 以数字方式传输数据
- 集成传感器诊断技术
很大程度上消除了典型的隔膜问题，因此在超纯水、严重污染介质和高温条件下都能实现高精度测量。
内置可补充的液体电解质储罐。两个陶瓷隔膜；通过加压实现自清洁（电解液持续流出）。
我们期待您的来信
联系我们
| 传感器材料: | Omega 玻璃 |
|---|---|
| 参考系统: | 银/氯化银，可补充液态电解质 |
| 插接头: | Memosens |
| 是否防爆: | Ex |
| 测量参数: | pH |
| 测量范围: | 0 … 14 pH |
| 温度: | -20 … 100 °C |
| 相对压力: | -1 … 6 bar |
| 长度: | 120 mm |
| 隔膜: | 陶瓷 (2x) |
下载
操作说明书
证书
Safety guides
