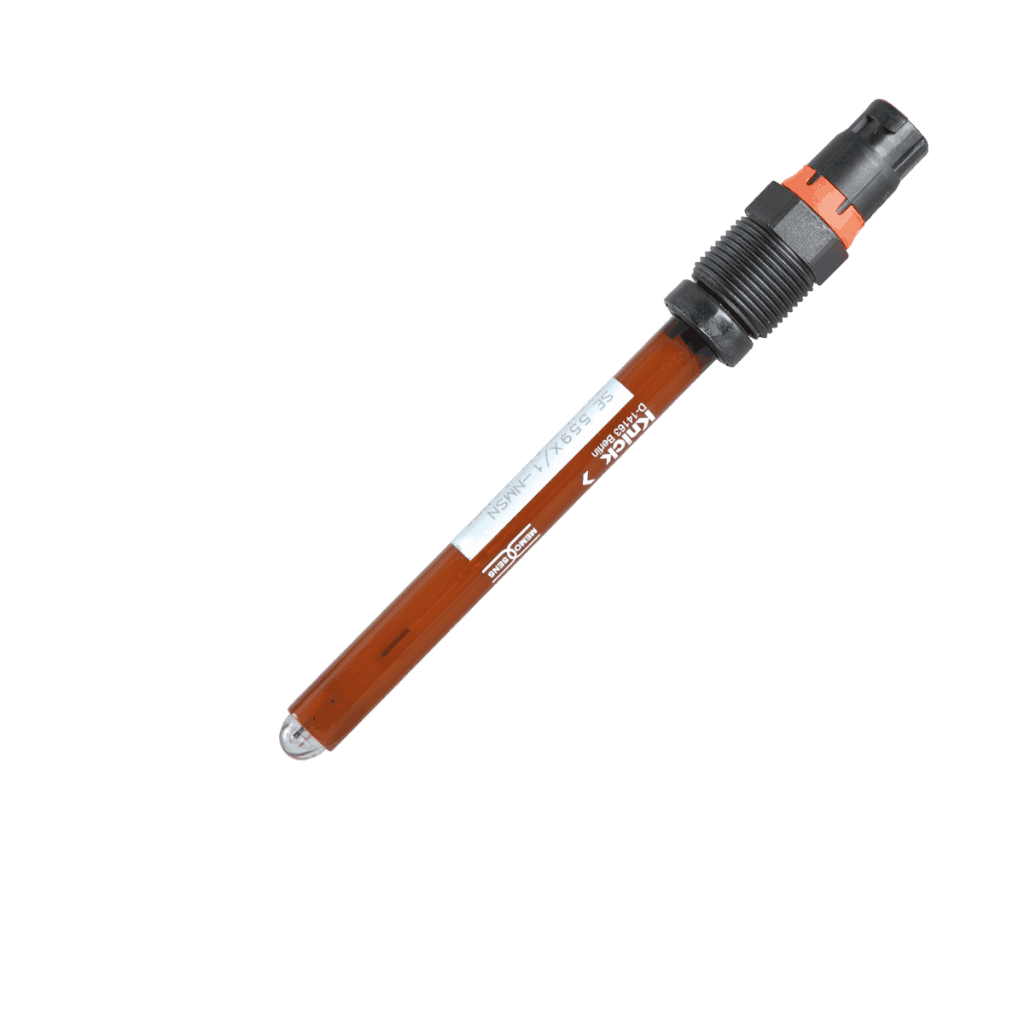

SE559 pH Sensor | Memosens | 120 mm | Ex | For water and analytical chemistry

长度
商品编号: SE559X/1-NMSN
说明 技术细节 下载 在工艺或应用中使用 相关的博客文章

Description

SE559 pH Sensor | Memosens | 120 mm | Ex | For water and analytical chemistry

For uncomplicated measurement in water and analytical chemistry, digital, with Memosens technology.

  • No influence of humidity in the connector
  • Precalibration in the lab
  • Digital data transfer
  • Integrated sensor diagnostics
  • Low maintenance, no refilling of electrolyte
  • Integrated temperature detector
  • Calibrated annular junction
  • Independent of flow
  • Alpha glass, medium impedance, universal glass, fluoride resistant

The calibrated annular junction enables precise measurements in process media virtually without influence of flow.The large contact surface of the junction minimizes problems caused by contamination.

The sensor is ideal for processes for which liquid-electrolyte sensors should be used, but where maintenance is impossible for a longer period of time.

Applications
Water supply and distribution, chemical processes.

我们期待您的来信
联系我们

技术细节

传感器材料: Alpha 玻璃
参考系统: Ag/AgCl，聚合物电解质
工艺连接: PG 13.5
插接头: Memosens
是否防爆: Ex
测量参数: pH
测量范围: 0 … 14 pH
温度: –5 … 100 °C (23 ... 212 °F)
温度检测器: NTC 30 kΩ
相对压力: 0 … 6 bar

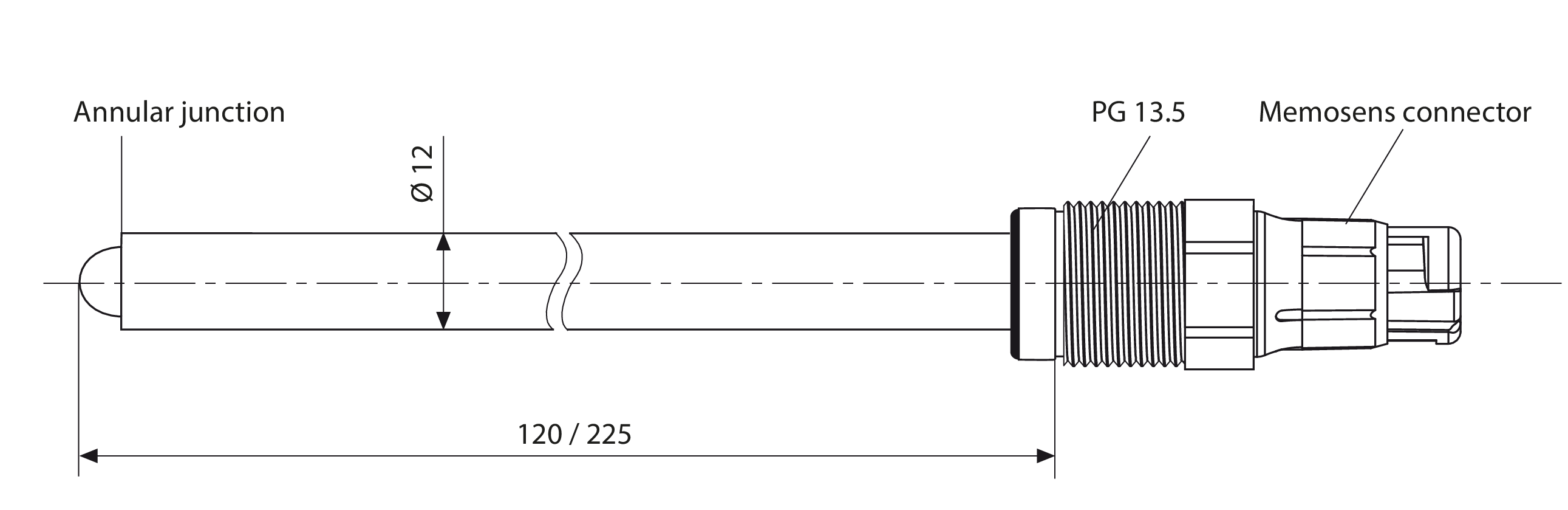

长度: 120 mm
隔膜: 校准环形间隙

下载

操作说明书

[16286] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09
[2589) Instructions for Use
SE559X/*-NMSN
Version 03
[14165] User Manual (DE, EN)
ZU 1054 Sensor Protection (Sensorschutz)

小册子

[13395] 宣传册
传感器 - 适用于测量pH/氧化还原值、电导率和氧。数字式与模拟式。

数据手册

[2581] Data sheet
SE559X/*-NMSN Memosens pH Sensor
Product Description | Specifications | Product Range

证书

[14690] Certificate of Conformity (FM)
No. FM17CA0105X | 2019-05-27 | Canada
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[14685] Certificate of Conformity (FM)
No. FM17US0208X | 2019-05-27 | USA
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[11064] EU Declaration of Conformity
No. EU210427A | 2021-04-27
Memosens Sensors | Types SE 5..X..-.MS., SE604X-MS**, SE605….., SE6**X**MS, SE7**…
[16262] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0355X
SE55*Xl*-NMSN, SE605H-XMS****
[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204

Safety guides

[11048] Material Safety Data Sheet
CaliMat buffer solution pH 4,00
[11045] Material Safety Data Sheet
CaliMat buffer solution pH 7,00
[11046] Material Safety Data Sheet
CaliMat buffer solution pH 9,00
[11049] Material Safety Data Sheet
CaliMat buffer solution pH 2,00
[11044] Material Safety Data Sheet
CaliMat buffer solution pH 12,00

控制图纸

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
