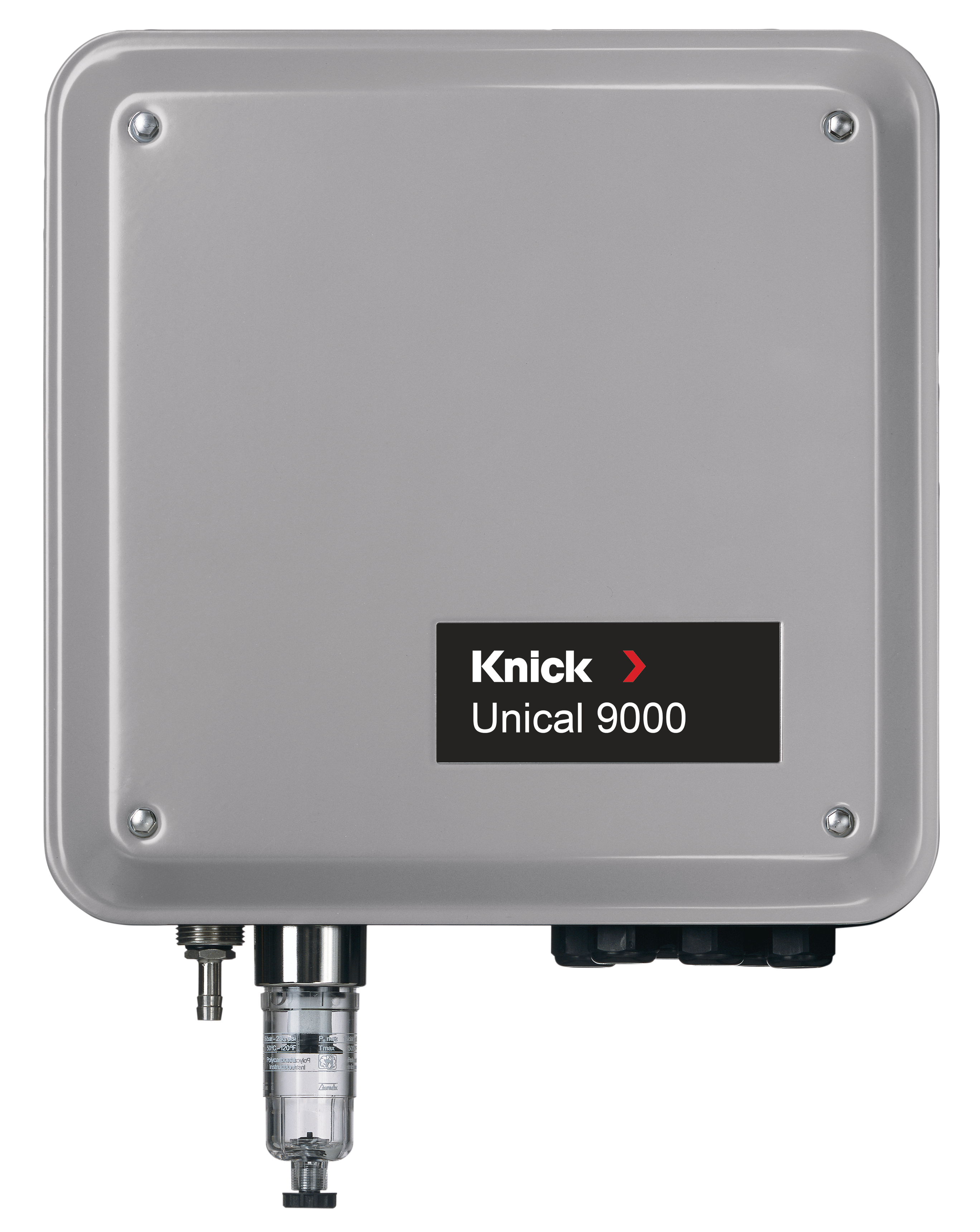

Unical 9000 Electro-pneumatic controller | For automatic cleaning and calibration | Ex | Corrosion-proof coating
Description
Maximum availability of the point of measurement: Cleaning without interrupting the process, even when measuring directly in the pressure tank
- corrosion-proof (powder-coated stainless steel)
- operation in hazardous locations Zone 1 (all system components)
- consistent enclosure concept for all devices.
- modular design, adaptable to virtually every measuring task
- easy assembly and retrofitting
- tidy hose guiding
- no entrainment and backmixing due to separate routing of the media
- low maintenance effort due to innovative pump technology and extremely low consumption of media
- automatic 2-point calibration
- time-controlled cleaning and checking
- cleaning with water and additional cleaning solution
- reduced maintenance effort due to automatic calibration
- no interruptions in production for calibration
- longer sensor life due to short-time measurement and regular cleaning
- immediate readiness for measurement after production interruption since sensor is safely stored in liquid
- safety ensured by monitoring of the compressed air and water supply, the probe position and the buffer and cleaning solution level
In combination with the Protos process analysis system and a SensoGate or Ceramat sensor lock-gate, Unical provides the ideal functionality of a complete system for automatic process control of a pH measurement.
It allows highly accurate measurements to be taken even with difficult process conditions such as high pressure, high temperatures, and high levels of impurities. The system can be installed next to the process, within the hazardous area.
Since the electrode is not removed for calibration, the process can continue uninterrupted. This allows problem-free measurements directly in a pressure vessel or in the main pipe. Elaborate and lockable bypasses are eliminated and accuracy increases.
Low maintenance
Fully automatic sensor calibration at user-defined intervals without interrupting the process. Two buffer solutions are automatically pumped into the calibration chamber. Only the buffer bottles need to be refilled.
Cost-effective
Low-wear and low-maintenance pumps with extremely low consumption of buffer.
Safe and easy measurement even in strongly polluted media
Sensor cleaning and rinsing is performed at user-defined intervals. Cleaning solution and water are automatically pumped into the calibration chamber. Removal and manual cleaning of the sensor are not required.
Distinction between calibration and adjustment
This allows you to check the sensor data in the running process. An adjustment is only carried out when there are preset deviations of the calibration values. Constant displacement of the measured values due to small calibration scatters is omitted.
Modern fieldbus integration
The interfaces to PROFIBUS PA or Foundation Fieldbus allow the Unical system to be integrated directly in a fieldbus network. Of course, also in hazardous areas.
Universal adaptation to retractable fittings
The modular structure of the Unical system allows any retractable fittings to be used. Optimum functionality is achieved with the Ceramat and Sensogate sensor lock-gates.
Clean and safe construction
All features for smooth, safe, and low-maintenance operation are included as standard: water pressure gage and service switch with alert message and feedback of the actual lock-gate position, air filter and water trap. Flooding sensor in the housing with alert message.
我们期待您的来信
联系我们
| 外壳: | Stainless steel A2, coated |
|---|---|
| 尺寸（宽 x 高 x 深）: | 约 320 x 400 x 120 毫米 |
| 是否防爆: | Ex, hazardous area Zone 1 |
| 测量参数: | pH/ORP |
| 防护等级: | IP 65/NEMA 4X |
