Combined Cycle Power Plants

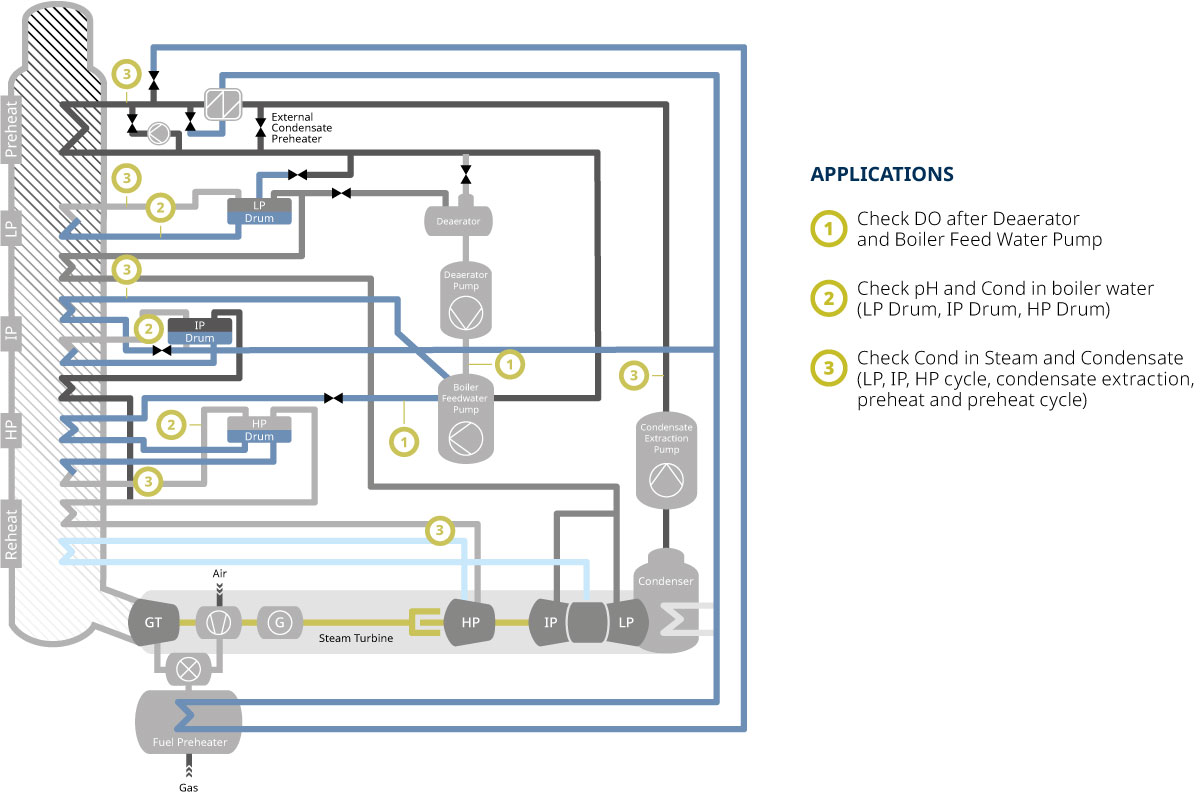

Many modern power plants are operated as combined cycle power plants. In the first step, a gas turbine generates electricity. The hot exhaust gas from the gas turbine is conducted to a conventional boiler system with an additional steam turbine, which ensures excellent overall efficiency. In the schematic below, the measuring loops for pH, conductivity, and DO are highlighted.

Energy

Key Facts About the Application

Sector

Power plants in combined cycle operation

Application

3 applications (1. Checking dissolved oxygen (DO), 2. Checking pH value and conductivity, 3. Checking conductivity) at multiple measuring loops

Measured Parameters

pH, conductivity, and dissolved oxygen

Main Requirements

Measurements in difficult, tight areas are required in order to prevent the following:

Deposits in the steam circuit
Damage to the pipe system and turbines/rotor
Formation of biofilms

Measurement in Boiler Feed Water, Steam, and Condensate

Description of application

Monitoring boiler feed water limit values in accordance with guidelines from EPRI (Electric Power Research Institute/USA), ASME (American Society of Mechanical Engineers/USA), NEM (NEM Energy (Siemens)/Netherlands), VGBE (Energy is us), TÜV (Technical Inspection Association)

Requirement for the application

In this process, conductivity must be monitored in a very low measuring range, which places maximum demands on the measuring technology. In the case of pH values, it is necessary to monitor compliance with a very narrow value range. Dissolved oxygen is a key indicator for preventing corrosion in the circuit since it can cause considerable, extremely expensive damage.
For these reasons, accurate measurement of all three parameters is the key factor for efficient, damage-free operation.
